Nalgene 32 oz Wide Mouth

Name: Nalgene 32 oz Wide Mouth dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What are the dimensions of the Nalgene 32 oz Wide Mouth? · Modern device · basis: Massey's Outfitters (retailer spec)

Also called: nalgene 32 oz wide mouth dimensions, nalgene 32 oz wide mouth size, nalgene 32 oz dimensions, Nalgene 32 oz Wide Mouth medidas, Nalgene 32 oz Wide Mouth dimensões, Nalgene 32 oz Wide Mouth Maße, Nalgene 32 oz Wide Mouth dimensions

Exact dimensions. True size, with no printing tolerance added.

length: 89 mm
width: 89 mm
height: 215 mm

Notes

Nalgene 32 oz Wide Mouth: 215 mm tall, 89 mm across.
Retailer lists 8.25 in (215 mm) — 8.25 in is 209.6 mm, so the height is uncertain by ~5 mm; diameter 3.5 in (89 mm); cap 63 mm.
Base diameter decides cup-holder fit; where the maker does not publish it, it is marked for a measured Xem scan.

Nalgene 32 oz Wide Mouth size chart

dimension	value
capacity	32 oz (1000 ml)
height	215 mm (8.46 in)
max diameter	89 mm (3.50 in)
base diameter	not published (scan planned)
handle	no

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Massey's Outfitters

Nalgene 32 oz Wide Mouth specifications

web

Publisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

nalgene-32-oz-wide-mouth-envelope

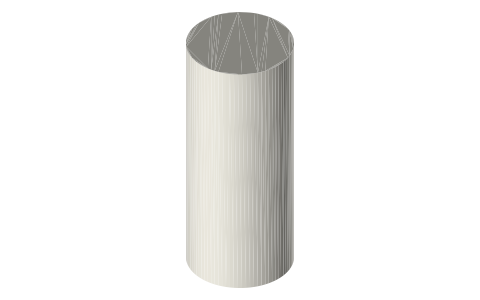

Cylinder envelope Ø89 × 215 mm from the published size (taper and cap not modelled)

STEP · STL
