Peg clutch pulley Ø30 face, Ø36 flanges, 14 wide, Ø5 bore, Ø3 peg hole

What is a peg clutch pulley? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: clutch pulley, loose pulley, polea loca de embrague, Losscheibe mit Mitnehmer

Exact dimensions. True size, with no printing tolerance added.

length
36.0 mm
width
36.0 mm
height
14.0 mm

Notes

  • Flanged pulley (Ø30 × 10 face between Ø36 × 2 flanges, 14 mm wide) that runs loose on the Ø5 shaft and carries a Ø3 dowel peg in its side face at 5.5 mm: slid along the shaft it engages the collar's peg and is driven; slid back it runs free.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Peg clutch pulley Ø30 face, Ø36 flanges, 14 wide, Ø5 bore, Ø3 peg hole size chart

dimensionvalue
faceØ30 × 10 mm
flangesØ36 × 2
boreØ5 (loose)
peg holeØ3 at r = 5.5

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 361: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

peg-clutch-pulley-d30-b5pulley, z 0..14, peg hole on +XSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=peg-clutch-pulley-d30-b5

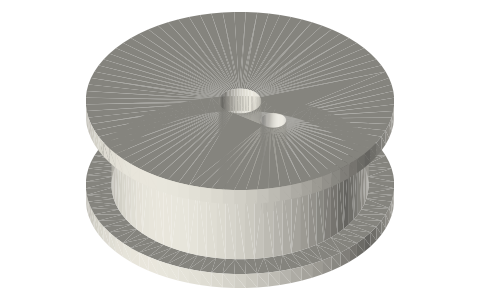

Peg clutch pulley Ø30 face, Ø36 flanges, 14 wide, Ø5 bore, Ø3 peg hole, isometric render of a generated part
Render of peg-clutch-pulley-d30-b5 from the free STEP; not to scale.

Fits with

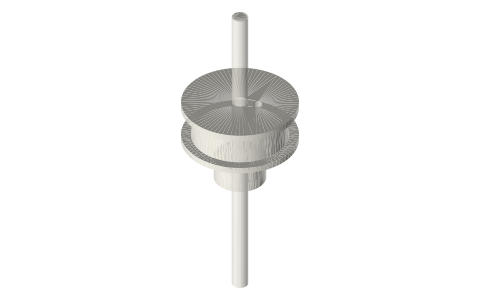

Peg clutch: sliding pulley driven by a peg on a collar, isometric render of a generated part
Peg clutch: sliding pulley driven by a peg on a collar4 sizes★ 1 file

Questions

What is a peg clutch pulley?

Flanged pulley (Ø30 × 10 face between Ø36 × 2 flanges, 14 mm wide) that runs loose on the Ø5 shaft and carries a Ø3 dowel peg in its side face at 5.5 mm: slid along the shaft it engages the collar's peg and is driven; slid back it runs free.
