Plate cam, cycloidal rise 12 mm, base circle R20, for a mushroom (curved-face) follower

What profile does a cycloidal plate cam have? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: cycloidal cam, plate cam, disc cam, mushroom (curved-face) cam, leva de disco, Kurvenscheibe

Exact dimensions. True size, with no printing tolerance added.

length
52.76 mm
width
52.0 mm
height
6.0 mm

Notes

  • Disc cam (6 mm, Ø5 bore) for a radial mushroom (curved-face) follower on a 20 mm base circle: rise 12 mm over 120° with cycloidal motion, dwell 60°, return over 120°, dwell 60°.
  • Profile computed point by point (720 points) from the displacement law: the pitch curve offset inward by the 25 mm face radius.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Plate cam, cycloidal rise 12 mm, base circle R20, for a mushroom… size chart

dimensionvalue
base circleR20
rise12 mm over 120°
dwells60° high, 60° low
lawcycloidal
boreØ5
thickness6 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 138: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

plate-cam-cycloidal-mushroom-r20-h12cam, z 0..6, follower on +Y at cam angle 0STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=plate-cam-cycloidal-mushroom-r20-h12

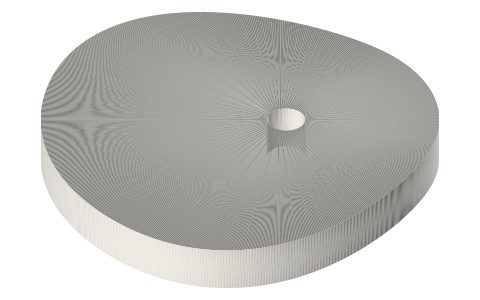

Plate cam, cycloidal rise 12 mm, base circle R20, for a mushroom (curved-face) follower, isometric render of a generated part
Render of plate-cam-cycloidal-mushroom-r20-h12 from the free STEP; not to scale.

Fits with

Plate cam with mushroom (curved-face) follower (cycloidal rise), isometric render of a generated part
Plate cam with mushroom (curved-face) follower (cycloidal rise)5 sizes★ 1 file

Questions

What profile does a cycloidal plate cam have?

Disc cam (6 mm, Ø5 bore) for a radial mushroom (curved-face) follower on a 20 mm base circle: rise 12 mm over 120° with cycloidal motion, dwell 60°, return over 120°, dwell 60°.
