Plate cam, cycloidal rise 12 mm, base circle R20, for a roller follower
What profile does a cycloidal plate cam have? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance
Also called: cycloidal cam, plate cam, disc cam, roller cam, leva de disco, Kurvenscheibe
Exact dimensions. True size, with no printing tolerance added.
- length
- 53.51 mm
- width
- 52.0 mm
- height
- 6.0 mm
Notes

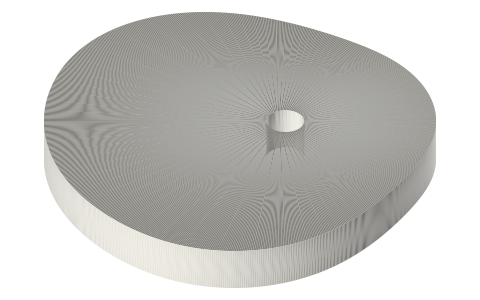

- Disc cam (6 mm, Ø5 bore) for a radial roller follower on a 20 mm base circle: rise 12 mm over 120° with cycloidal motion, dwell 60°, return over 120°, dwell 60°.
- Profile computed point by point (720 points) from the displacement law: the roller-centre (pitch) curve offset inward by the 5 mm roller radius.
- Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).
Plate cam, cycloidal rise 12 mm, base circle R20, for a roller… size chart
| dimension | value |
|---|---|
| base circle | R20 |
| rise | 12 mm over 120° |
| dwells | 60° high, 60° low |
| law | cycloidal |
| bore | Ø5 |
| thickness | 6 mm |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 138: figure, his text and an animation | web | Publisher's page; dimensions are facts |
| Xem Studio | drawing | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=plate-cam-cycloidal-roller-r20-h12
Fits with
Questions
What profile does a cycloidal plate cam have?
Disc cam (6 mm, Ø5 bore) for a radial roller follower on a 20 mm base circle: rise 12 mm over 120° with cycloidal motion, dwell 60°, return over 120°, dwell 60°.
