Polymaker 1 kg cardboard spool

What are the dimensions of a Polymaker 1 kg spool? · Modern device · basis: Polymaker (official)

Also called: polymaker spool dimensions, 1kg filament spool dimensions, filament spool size, filament spool inner diameter, Polymaker 1 kg cardboard spool medidas, Polymaker 1 kg cardboard spool dimensões, Polymaker 1 kg cardboard spool Maße, Polymaker 1 kg cardboard spool dimensions

Exact dimensions. True size, with no printing tolerance added.

length
200 mm
width
200 mm
height
65.6 mm

Notes

  • Polymaker 1 kg cardboard spool: Ø200 outer, 65.6 mm wide, Ø55 centre hole, 140 g empty.
  • Tolerances: OD ±1, width ±2, bore ±1 mm, weight ±7 g.
  • The file is the spool envelope (outer cylinder with the centre hole) for holders, dry boxes and AMS-style feeders.

Polymaker 1 kg cardboard spool size chart

dimensionvalue
outer diameter200 mm
width65.6 mm
centre holeØ55 mm
empty weight140 g

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

PolymakerPolymaker 1 kg cardboard spoolwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

polymaker-1-kg-cardboard-spool-envelopeØ200 × 65.6, Ø55 holeSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=polymaker-1-kg-cardboard-spool

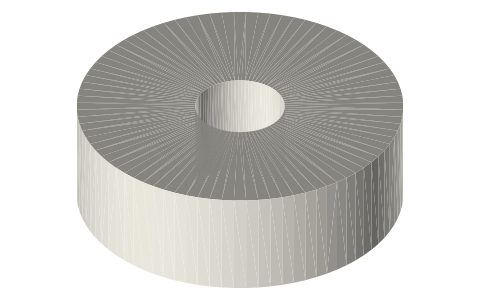

Polymaker 1 kg cardboard spool, isometric render of a generated part
Render of polymaker-1-kg-cardboard-spool-envelope from the free STEP; not to scale.

Fits with

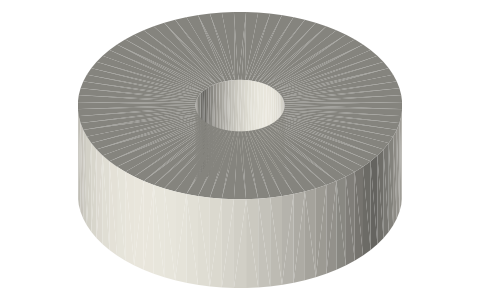

Bambu Lab reusable spool (1 kg, high-temperature), isometric render of a generated part
Bambu Lab reusable spool (1 kg, high-temperature)200×200×67 mm★ 1 file
length
Bambu Lab AMS Lite spool holder2 sizes★ sheet

Questions

What size is a Polymaker 1 kg spool?

Ø200 × 65.6 mm with a Ø55 hole.
