Raspberry Pi 500

Name: Raspberry Pi 500 dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What are the dimensions of the Raspberry Pi 500? · Modern device · basis: Raspberry Pi specifications

Also called: raspberry pi 500 dimensions, 500 size, raspberry pi 500 medidas, raspberry pi 500 dimensões, raspberry pi 500 Maße

Exact dimensions. True size, with no printing tolerance added.

length: 286 mm
width: 122 mm
height: 23 mm

Notes

Raspberry Pi 500: 286 × 122 × 23 mm (width × depth × height). Maximum dimensions from the product brief; weight not published.
Overall envelope only: ports, buttons, feet and mounting features are not published (scan planned where it matters). The file is the envelope.

Raspberry Pi 500 size chart

dimension	value
width × depth × height	286 × 122 × 23 mm (11.26 × 4.80 × 0.91 in)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Raspberry Pi

Raspberry Pi 500 specifications

web

Publisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

raspberry-pi-500-envelope

Envelope 286 × 122 × 23 mm

STEP · STL

Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.

Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=raspberry-pi-500

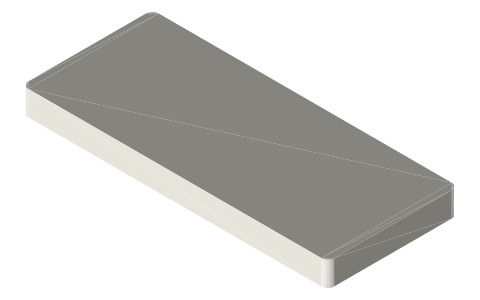

Raspberry Pi 500, isometric render of a generated part — Render of raspberry-pi-500-envelope from the free STEP; not to scale.

Questions

How big is the Raspberry Pi 500?

286 × 122 × 23 mm.
