Shure MV7+

Name: Shure MV7+ dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What are the dimensions of the Shure MV7+? · Modern device · basis: Retailer listing (secondary — no maker spec page found) specifications

Also called: shure mv7+ dimensions, mv7+ size, shure mv7+ medidas, shure mv7+ dimensões, shure mv7+ Maße, Shure MV7+ medidas, Shure MV7+ dimensões, Shure MV7+ Maße, Shure MV7+ dimensions

Exact dimensions. True size, with no printing tolerance added.

length: 169.5 mm
width: 90 mm
height: 90 mm

Notes

Shure MV7+: 169.5 mm long, Ø90 mm, 573.5 g. Ø90 mm across the yoke knobs; 164 × 207 × 90 mm (H × L × D) in its yoke at 90°; 5/8"-27 mount thread.
Overall envelope only: ports, buttons, feet and mounting features are not published (scan planned where it matters). The file is the envelope.

Shure MV7+ size chart

dimension	value
length	169.5 mm
diameter	Ø90 mm
weight	573.5 g

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Retailer listing

Shure MV7+ specifications

web

Publisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

shure-mv7-plus-envelope

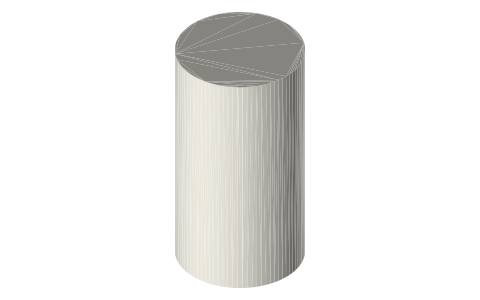

Envelope 169.5 mm long, Ø90 mm

STEP · STL
