Starlink Mini

What are the dimensions of the Starlink Mini? · Modern device · basis: Placeholder: maker does not publish dimensions

Also called: starlink mini dimensions, starlink mini size, starlink mini 3d model

Exact dimensions. True size, with no printing tolerance added.

sizes
2 in table

Notes

  • Starlink Mini: dimensions not published. The maker does not publish this geometry and it cannot be derived from a spec. A measured Xem scan is planned — request it to move it up the queue.
  • Published overall size: 298.5 × 259 × 38.5 mm (11.75 × 10.2 × 1.45 in), 1.10 kg antenna only (axes not labelled) (Starlink). Fit features below still need the scan.
  • Scan to capture: outer shell and corner curvature, rear mounting pocket and kickstand receiver, pole-mount interface, power and cable clearances. Requested by an AI agent through the Xem MCP.
  • The download is the envelope at the published size: true size, no printing allowance. Buttons, ports, curves and surface detail are not modelled, so use it to hold space, cut a pocket or build around the object.

Starlink Mini size chart

itemvalue
overall (published)298.5 × 259 × 38.5 mm (11.75 × 10.2 × 1.45 in), 1.10 kg antenna only (axes not labelled)
dimensionsscan planned

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

StarlinkStarlink Mini specification sheet (PDF)webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

starlink-mini-overall-published-envelopeoverall (published): 298.5 × 259 × 38.5 mm envelope (published order)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=starlink-mini

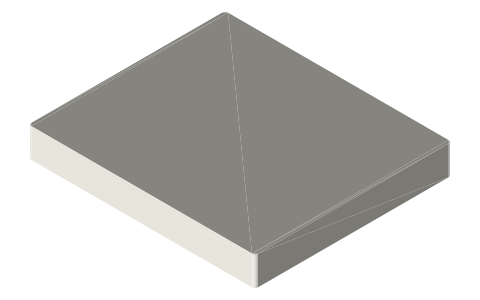

Starlink Mini, isometric render of a generated part
Render of starlink-mini-overall-published-envelope from the free STEP; not to scale.

Fits with

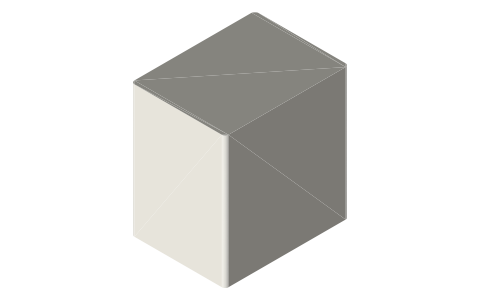

Nintendo GameCube (DOL-001), isometric render of a generated part
Nintendo GameCube (DOL-001)2 sizes★ 1 file

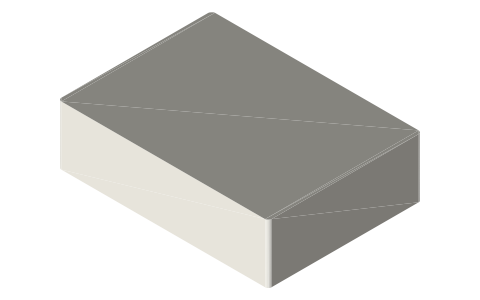

Nintendo 64 (NUS-001), isometric render of a generated part
Nintendo 64 (NUS-001)2 sizes★ 1 file

Questions

What are the dimensions of the Starlink Mini?

Not published by the maker; a measured Xem scan is planned.
