Tamiya TT-02 chassis (bare chassis, First Try kit 57986)

What are the dimensions of the Tamiya TT-02 chassis? · Modern device · basis: Manufacturer specifications (Tamiya)

Also called: tamiya tt-02 chassis dimensions, tt-02 chassis size, tt02 wheelbase, tt-02 chassis length, tt-02 width, tt02 chassis footprint, medidas chasis tt-02, tamiya tt-02 chassis maße, tamiya tt-02 chassis specs

Exact dimensions. True size, with no printing tolerance added.

length
376 mm
width
182 mm

Notes

  • The TT-02 is Tamiya's shaft-driven 4WD bathtub chassis used under most 1/10 touring car kits. The file is a 376 × 182 mm footprint with wheel centres on a 257 mm wheelbase.
  • Height, tread and body-post spacing are not published.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.

Tamiya TT-02 chassis size chart

dimensionvalue
Chassis length376 mm
Width182 mm
Wheelbase257 mm
Tire width / diameter26 / 67 mm (front & rear)
TT-02R chassis kit (47326)376 × 182 mm, 257 mm wheelbase, 24 / 64 mm tires
TT-02 Type-S (58600)385 × 187 mm, 257 mm wheelbase, 24 / 64 mm tires
MotorType 540

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

TamiyaFirst Try R/C Kit (TT-02) 57986webPublisher's page; dimensions are facts
TamiyaTT-02R Chassis Kit 47326webPublisher's page; dimensions are facts
TamiyaTT-02 Type-S Chassis Kit 58600webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

tamiya-tt-02-chassis-footprintChassis footprint 376 × 182 mm, 1 mm reference (height not published); axles 257 mm apartSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tamiya-tt-02-chassis

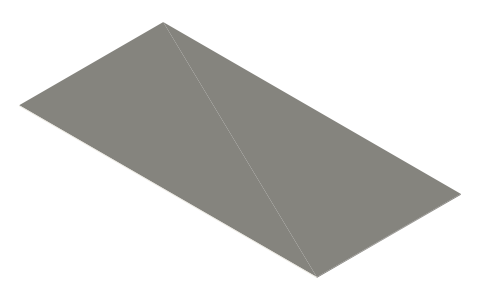

Tamiya TT-02 chassis (bare chassis, First Try kit 57986), isometric render of a generated part
Render of tamiya-tt-02-chassis-footprint from the free STEP; not to scale.

Fits with

length
Traxxas Ford Fiesta ST Rally BL-2s (1/10 rally car, 74154-4)535×281×206 mm★ 1 file
length
ARRMA Typhon 6S BLX (1/8 buggy, ARA106046)510×310×190 mm★ 1 file
length
ARRMA Infraction 6S BLX (1/7 street basher, ARA109001)695×310×200 mm★ 1 file
length
Tamiya The Grasshopper (2005 re-release, 58346)389×223×135 mm★ 1 file

Questions

How long is a Tamiya TT-02 chassis?

376 mm long and 182 mm wide on a 257 mm wheelbase.
