Traxxas 4676 76-tooth 48-pitch gear

What size is Traxxas 4676 gear? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 4676, traxxas 4676, Traxxas part 4676, 4676 spur gear, 76-tooth (48-pitch) (torque control slipper clutch), Traxxas 4676 size, Traxxas 4676 dimensions, Traxxas 4676 replacement, repuesto Traxxas 4676, Traxxas 4676 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
41.27 mm
width
41.27 mm
height
1.0 mm

Notes

  • Traxxas part 4676: Spur gear, 76-tooth (48-pitch) (Torque Control slipper clutch). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • 76-tooth 48-pitch gear, 20° involute, module 0.5292 mm, Ø41.27 OD — 1 mm reference (face width not printed).
  • True size, no printing tolerance added.

Traxxas 4676 76-tooth 48-pitch gear size chart

dimensionvalue
part numberTraxxas 4676
name (as printed)Spur gear, 76-tooth (48-pitch) (Torque Control slipper clutch)
size (as printed)76-tooth; 48-pitch
teeth76
pitch48 diametral pitch (module 0.5292 mm)
pitch diameter40.22 mm
outside diameter41.27 mm (standard addendum)
borenot printed
face widthnot printed
used inTraxxas Rustler 2WD XL-5 (1/10 stadium truck, 37054)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by der-getriebedoktor.de)Rustler: TQ 2.4 GHz Radio (Model 37054-8) Parts List, REV. 230705 1013, p. 4webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-4676-spur-gear-76-tooth-48-pitch-torque-control-slipper-clutch-profile76-tooth 48-pitch gear, 20° involute, module 0.5292 mm, Ø41.27 OD — 1 mm reference (face width not printed)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-4676-spur-gear-76-tooth-48-pitch-torque-control-slipper-clutch

Traxxas 4676 76-tooth 48-pitch gear, isometric render of a generated part

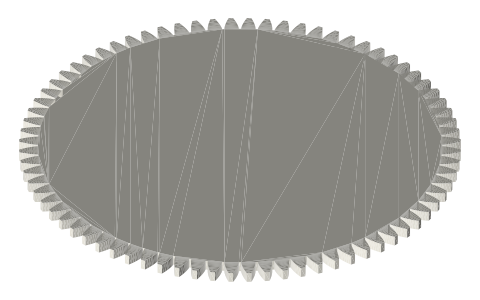

Render of traxxas-4676-spur-gear-76-tooth-48-pitch-torque-control-slipper-clutch-profile from the free STEP; not to scale.
