Traxxas 5102A ball bearing, 15 × 21 × 4 mm

What size is Traxxas bearing 5102A? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 5102A, traxxas 5102A, Traxxas part 5102A, 5102A ball bearings, black rubber sealed (15x21x4mm), Traxxas 5102A size, Traxxas 5102A dimensions, Traxxas 5102A replacement, repuesto Traxxas 5102A, Traxxas 5102A Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
21.01 mm
width
21.01 mm
height
4.01 mm

Notes

  • Traxxas part 5102A: Ball bearings, black rubber sealed (15x21x4mm) (2). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • Bearing envelope 15 × 21 × 4 mm (bore × OD × width).
  • True size, no printing tolerance added.

Traxxas 5102A ball bearing, 15 × 21 × 4 mm size chart

dimensionvalue
part numberTraxxas 5102A
name (as printed)Ball bearings, black rubber sealed (15x21x4mm) (2)
size (as printed)15x21x4mm
bore15 mm
outside diameter21 mm
width4 mm
seals / ballsas printed in the name; not modelled
used inTraxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by Monsterhopups)TRX-4 Unassembled Kit (Model 82016-4) parts list, REV. 230615 0246, p. 1webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-5102a-ball-bearings-black-rubber-sealed-15x21x4mm-envelopeBearing envelope 15 × 21 × 4 mm (bore × OD × width)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-5102a-ball-bearings-black-rubber-sealed-15x21x4mm

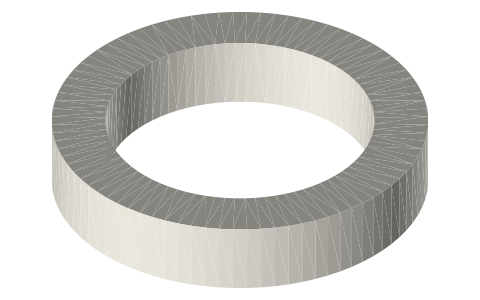

Traxxas 5102A ball bearing, 15 × 21 × 4 mm, isometric render of a generated part
