Traxxas 5103A ball bearing, 7 × 14 × 5 mm

What size is Traxxas bearing 5103A? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 5103A, traxxas 5103A, Traxxas part 5103A, 5103A ball bearings, black rubber sealed (7x14x5mm), Traxxas 5103A size, Traxxas 5103A dimensions, Traxxas 5103A replacement, repuesto Traxxas 5103A, Traxxas 5103A Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
14.01 mm
width
14.01 mm
height
5.01 mm

Notes

  • Traxxas part 5103A: Ball bearings, black rubber sealed (7x14x5mm) (2). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • Bearing envelope 7 × 14 × 5 mm (bore × OD × width).
  • True size, no printing tolerance added.

Traxxas 5103A ball bearing, 7 × 14 × 5 mm size chart

dimensionvalue
part numberTraxxas 5103A
name (as printed)Ball bearings, black rubber sealed (7x14x5mm) (2)
size (as printed)7x14x5mm
bore7 mm
outside diameter14 mm
width5 mm
seals / ballsas printed in the name; not modelled
used inTraxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by Monsterhopups)TRX-4 Unassembled Kit (Model 82016-4) parts list, REV. 230615 0246, p. 1webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-5103a-ball-bearings-black-rubber-sealed-7x14x5mm-envelopeBearing envelope 7 × 14 × 5 mm (bore × OD × width)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-5103a-ball-bearings-black-rubber-sealed-7x14x5mm

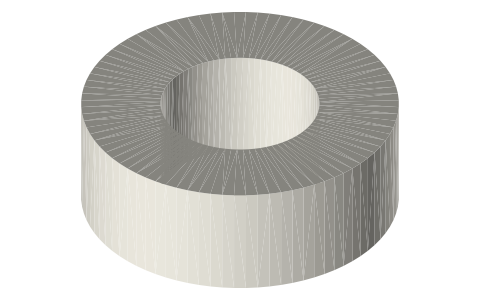

Traxxas 5103A ball bearing, 7 × 14 × 5 mm, isometric render of a generated part
