Traxxas 5104A ball bearing, 4 × 10 × 4 mm

What size is Traxxas bearing 5104A? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 5104A, traxxas 5104A, Traxxas part 5104A, 5104A ball bearings, black rubber sealed (4x10x4mm), Traxxas 5104A size, Traxxas 5104A dimensions, Traxxas 5104A replacement, repuesto Traxxas 5104A, Traxxas 5104A Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
10.01 mm
width
10.01 mm
height
4.01 mm

Notes

  • Traxxas part 5104A: Ball bearings, black rubber sealed (4x10x4mm) (2). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • Bearing envelope 4 × 10 × 4 mm (bore × OD × width).
  • True size, no printing tolerance added.

Traxxas 5104A ball bearing, 4 × 10 × 4 mm size chart

dimensionvalue
part numberTraxxas 5104A
name (as printed)Ball bearings, black rubber sealed (4x10x4mm) (2)
size (as printed)4x10x4mm
bore4 mm
outside diameter10 mm
width4 mm
seals / ballsas printed in the name; not modelled
used inTraxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by Monsterhopups)TRX-4 Unassembled Kit (Model 82016-4) parts list, REV. 230615 0246, p. 1webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-5104a-ball-bearings-black-rubber-sealed-4x10x4mm-envelopeBearing envelope 4 × 10 × 4 mm (bore × OD × width)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-5104a-ball-bearings-black-rubber-sealed-4x10x4mm

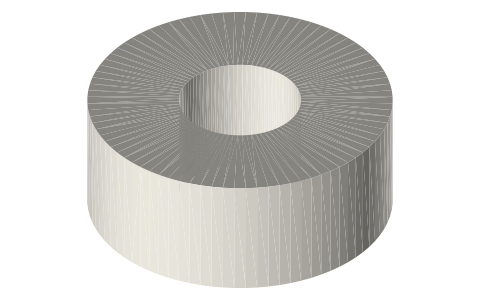

Traxxas 5104A ball bearing, 4 × 10 × 4 mm, isometric render of a generated part
Render of traxxas-5104a-ball-bearings-black-rubber-sealed-4x10x4mm-envelope from the free STEP; not to scale.

Fits with

Traxxas TRX-4 kit (82016-4) parts list, isometric render of a generated part
Traxxas TRX-4 kit (82016-4) parts list584×249×239 mm★ 47 files
length
Traxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4)584×249×239 mm★ 1 file
Ball bearings, 683 to 6210 and flanged F6xx (ISO 15), isometric render of a generated part
Ball bearings, 683 to 6210 and flanged F6xx (ISO 15)44 sizes★ 44 files

Questions

What size is Traxxas bearing 5104A?

4 × 10 × 4 mm
