Traxxas 5117A ball bearing, 6 × 12 × 4 mm

What size is Traxxas bearing 5117A? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 5117A, traxxas 5117A, Traxxas part 5117A, 5117A ball bearings, black rubber sealed (6x12x4mm), Traxxas 5117A size, Traxxas 5117A dimensions, Traxxas 5117A replacement, repuesto Traxxas 5117A, Traxxas 5117A Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
12.01 mm
width
12.01 mm
height
4.01 mm

Notes

  • Traxxas part 5117A: Ball bearings, black rubber sealed (6x12x4mm) (2). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • Bearing envelope 6 × 12 × 4 mm (bore × OD × width).
  • True size, no printing tolerance added.

Traxxas 5117A ball bearing, 6 × 12 × 4 mm size chart

dimensionvalue
part numberTraxxas 5117A
name (as printed)Ball bearings, black rubber sealed (6x12x4mm) (2)
size (as printed)6x12x4mm
bore6 mm
outside diameter12 mm
width4 mm
seals / ballsas printed in the name; not modelled
used inTraxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by Monsterhopups)TRX-4 Unassembled Kit (Model 82016-4) parts list, REV. 230615 0246, p. 1webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-5117a-ball-bearings-black-rubber-sealed-6x12x4mm-envelopeBearing envelope 6 × 12 × 4 mm (bore × OD × width)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-5117a-ball-bearings-black-rubber-sealed-6x12x4mm

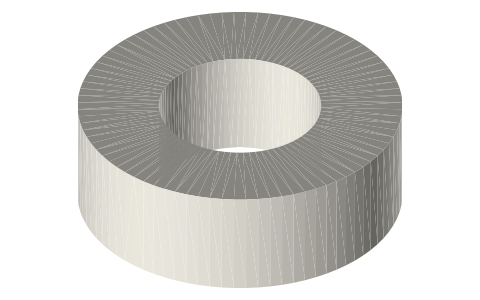

Traxxas 5117A ball bearing, 6 × 12 × 4 mm, isometric render of a generated part
