Traxxas 5119A ball bearing, 10 × 15 × 4 mm

What size is Traxxas bearing 5119A? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 5119A, traxxas 5119A, Traxxas part 5119A, 5119A ball bearings, black rubber sealed (10x15x4mm), Traxxas 5119A size, Traxxas 5119A dimensions, Traxxas 5119A replacement, repuesto Traxxas 5119A, Traxxas 5119A Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
15.01 mm
width
15.01 mm
height
4.01 mm

Notes

  • Traxxas part 5119A: Ball bearings, black rubber sealed (10x15x4mm) (2). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • Bearing envelope 10 × 15 × 4 mm (bore × OD × width).
  • True size, no printing tolerance added.

Traxxas 5119A ball bearing, 10 × 15 × 4 mm size chart

dimensionvalue
part numberTraxxas 5119A
name (as printed)Ball bearings, black rubber sealed (10x15x4mm) (2)
size (as printed)10x15x4mm
bore10 mm
outside diameter15 mm
width4 mm
seals / ballsas printed in the name; not modelled
used inTraxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by Monsterhopups)TRX-4 Unassembled Kit (Model 82016-4) parts list, REV. 230615 0246, p. 1webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-5119a-ball-bearings-black-rubber-sealed-10x15x4mm-envelopeBearing envelope 10 × 15 × 4 mm (bore × OD × width)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-5119a-ball-bearings-black-rubber-sealed-10x15x4mm

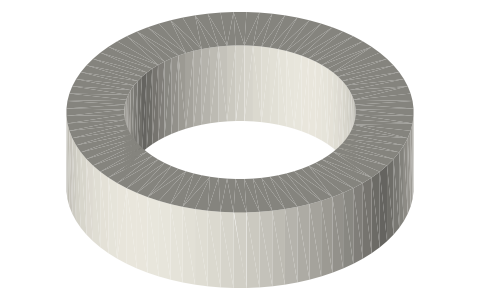

Traxxas 5119A ball bearing, 10 × 15 × 4 mm, isometric render of a generated part
Render of traxxas-5119a-ball-bearings-black-rubber-sealed-10x15x4mm-envelope from the free STEP; not to scale.

Fits with

Traxxas TRX-4 kit (82016-4) parts list, isometric render of a generated part
Traxxas TRX-4 kit (82016-4) parts list584×249×239 mm★ 47 files
length
Traxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4)584×249×239 mm★ 1 file
Ball bearings, 683 to 6210 and flanged F6xx (ISO 15), isometric render of a generated part
Ball bearings, 683 to 6210 and flanged F6xx (ISO 15)44 sizes★ 44 files

Questions

What size is Traxxas bearing 5119A?

10 × 15 × 4 mm
