Traxxas 6747 11-tooth 32-pitch gear

Name: Traxxas 6747 11-tooth 32-pitch gear dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What size is Traxxas 6747 gear? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 6747, traxxas 6747, Traxxas part 6747, 6747 gear, 11-t pinion (32-p) (steel) (fits 3mm shaft)/ set screw, Traxxas 6747 size, Traxxas 6747 dimensions, Traxxas 6747 replacement, repuesto Traxxas 6747, Traxxas 6747 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length: 10.17 mm
width: 10.27 mm
height: 1.0 mm

Notes

Traxxas part 6747: Gear, 11-T pinion (32-p) (steel) (fits 3mm shaft)/ set screw. Size exactly as printed in Traxxas's parts list; the file is built from that size only.
11-tooth 32-pitch gear, 20° involute, module 0.7937 mm, Ø10.32 OD, Ø3 bore — 1 mm reference (face width not printed).
True size, no printing tolerance added.

Traxxas 6747 11-tooth 32-pitch gear size chart

dimension	value
part number	Traxxas 6747
name (as printed)	Gear, 11-T pinion (32-p) (steel) (fits 3mm shaft)/ set screw
size (as printed)	3mm; 11-T pinion; 32-p
teeth	11
pitch	32 diametral pitch (module 0.7937 mm)
pitch diameter	8.73 mm
outside diameter	10.32 mm (standard addendum)
bore	3 mm
face width	not printed
used in	Traxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by Monsterhopups)

TRX-4 Unassembled Kit (Model 82016-4) parts list, REV. 230615 0246, p. 5

web

Publisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-6747-gear-11-t-pinion-32-p-steel-fits-3mm-shaft-set-screw-profile

11-tooth 32-pitch gear, 20° involute, module 0.7937 mm, Ø10.32 OD, Ø3 bore — 1 mm reference (face width not printed)

STEP · STL

Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.

Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-6747-gear-11-t-pinion-32-p-steel-fits-3mm-shaft-set-screw

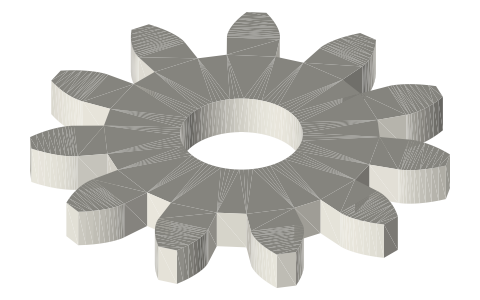

Traxxas 6747 11-tooth 32-pitch gear, isometric render of a generated part — Render of traxxas-6747-gear-11-t-pinion-32-p-steel-fits-3mm-shaft-set-screw-profile from the free STEP; not to scale.
