Traxxas 8052 39-tooth 32-pitch gear

What size is Traxxas 8052 gear? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 8052, traxxas 8052, Traxxas part 8052, 8052 spur gear, 39-tooth (32-pitch), Traxxas 8052 size, Traxxas 8052 dimensions, Traxxas 8052 replacement, repuesto Traxxas 8052, Traxxas 8052 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
32.51 mm
width
32.54 mm
height
1.0 mm

Notes

  • Traxxas part 8052: Spur gear, 39-tooth (32-pitch). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • 39-tooth 32-pitch gear, 20° involute, module 0.7937 mm, Ø32.54 OD — 1 mm reference (face width not printed).
  • True size, no printing tolerance added.

Traxxas 8052 39-tooth 32-pitch gear size chart

dimensionvalue
part numberTraxxas 8052
name (as printed)Spur gear, 39-tooth (32-pitch)
size (as printed)39-tooth; 32-pitch
teeth39
pitch32 diametral pitch (module 0.7937 mm)
pitch diameter30.96 mm
outside diameter32.54 mm (standard addendum)
borenot printed
face widthnot printed
used inTraxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by Monsterhopups)TRX-4 Unassembled Kit (Model 82016-4) parts list, REV. 230615 0246, p. 5webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-8052-spur-gear-39-tooth-32-pitch-profile39-tooth 32-pitch gear, 20° involute, module 0.7937 mm, Ø32.54 OD — 1 mm reference (face width not printed)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-8052-spur-gear-39-tooth-32-pitch

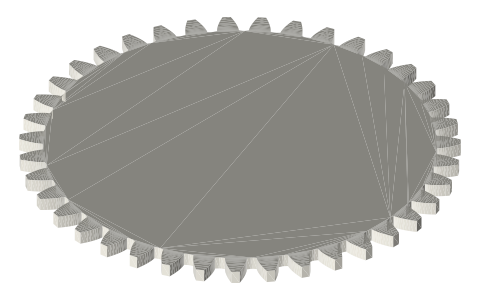

Traxxas 8052 39-tooth 32-pitch gear, isometric render of a generated part
