Traxxas TRX-4M tire 61.9 × 25.6 mm (1.0 in wheel)

What are the dimensions of the Traxxas TRX-4M tire 61.9 × 25.6 mm? · Modern device · basis: Secondary source: RC Car Action (Traxxas release) (copy of the maker's figures; the maker publishes none directly)

Also called: trx-4m tire size, trx4m tire diameter, trx-4m wheel size, 1.0 crawler tire size, trx-4m high trail tires, medidas neumatico trx4m, trx-4m reifen größe, traxxas trx-4m tire 61.9 × 25.6 mm specs, traxxas trx-4m tire 61.9 × 25.6 mm measurements

Exact dimensions. True size, with no printing tolerance added.

length
61.9 mm
width
61.9 mm
height
25.6 mm

Notes

  • This is the stock tire on the Traxxas TRX-4M High Trail (K10). The file is a Ø61.9 × 25.6 mm cylinder.
  • Tread is not modelled; the standard TRX-4M Bronco tire size is not published.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

Traxxas TRX-4M tire 61.9 × 25.6 mm size chart

dimensionvalue
Tire2.4 × 1.0 in (61.9 × 25.6 mm)
Wheel1.0 × 0.49 in (25.4 × 12.5 mm)
Wheel hex7 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

RC Car Action (Traxxas release)TRX-4M Chevrolet K10 High TrailwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-trx-4m-tire-envelopeEnvelope Ø61.9 × 25.6 mm (Mounted tire outside diameter × width)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-trx-4m-tire

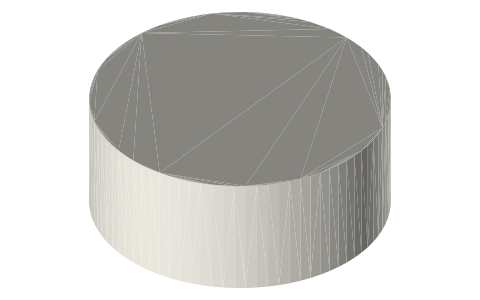

Traxxas TRX-4M tire 61.9 × 25.6 mm (1.0 in wheel), isometric render of a generated part
Render of traxxas-trx-4m-tire-envelope from the free STEP; not to scale.

Fits with

Traxxas TRX-4 1.9 in tire 118 × 48 mm (Canyon Trail), isometric render of a generated part
Traxxas TRX-4 1.9 in tire 118 × 48 mm (Canyon Trail)118×118×48 mm★ 1 file

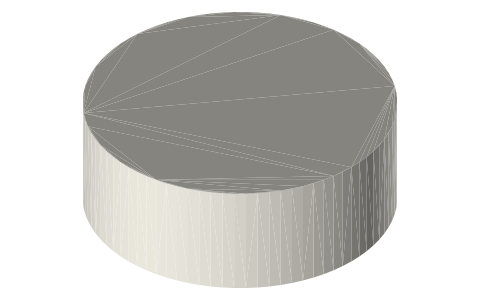

Tamiya CC-02 tire 90 × 33 mm, isometric render of a generated part
Tamiya CC-02 tire 90 × 33 mm90×90×33 mm★ 1 file

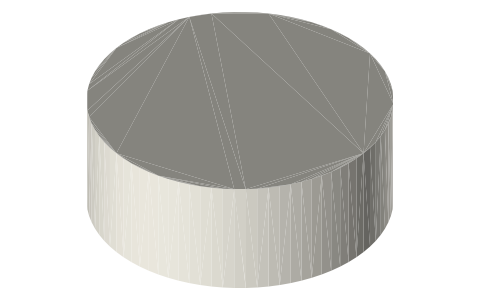

Tamiya TT-02 touring tire 66 × 26 mm, isometric render of a generated part
Tamiya TT-02 touring tire 66 × 26 mm66×66×26 mm★ 1 file

Questions

What size are TRX-4M High Trail tires?

61.9 × 25.6 mm on 1.0 × 0.49 in wheels with 7 mm hexes.
