19.2 oz can (568 ml)
What are the dimensions of a 19.2 oz can? · Modern device · basis: Ardagh can via GW Kent (distributor spec)
Also called: 19.2 oz can dimensions, 19.2 oz can size, tallboy can size, medidas lata 568 ml, dimensões lata 568 ml, Getränkedose 568 ml Maße, dimensions canette 568 ml
Exact dimensions. True size, with no printing tolerance added.
- height
- 188.11 mm
Notes
- 19.2 oz (568 ml): 211 body (the 12 oz standard body), 202 end, 188.11 mm tall (7.406 in), per the distributor's Ardagh listing.
- Body diameter in mm is not on this page; Crown's 211 cans list 66 mm.
19.2 oz can size chart
| dimension | value |
|---|---|
| height | 188.11 mm (7.41 in) |
| body | 211 |
| end | 202 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| GW Kent | 19.2 oz can (Ardagh) | web | Publisher's page; dimensions are facts |
Xem scan
Not planned The manufacturer publishes CAD; the sheet is here so an assistant can answer without opening a PDF.
Let your AI pull this. Add
Set it up →https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=19-2-oz-can
Fits with
Free
Aluminium beverage cans: 12 oz standard, 16 oz, 330/500 mL, sleek, slim, mini7 sizes★ 8 filesFree

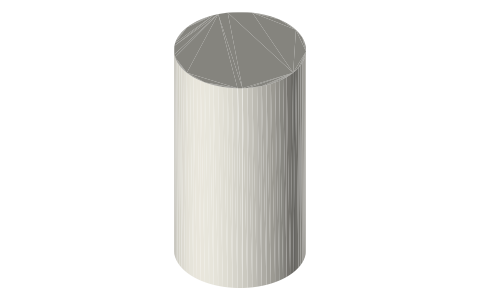

12 oz standard can (355 ml)66×66×122.22 mm★ 1 fileFree

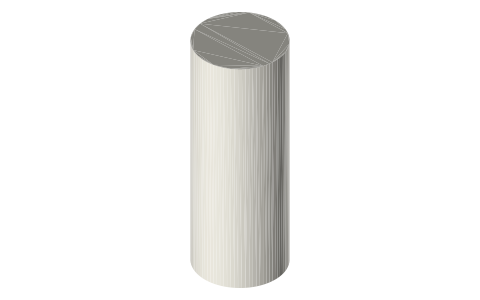

12 oz sleek can (355 ml)58×58×156.59 mm★ 1 fileFree

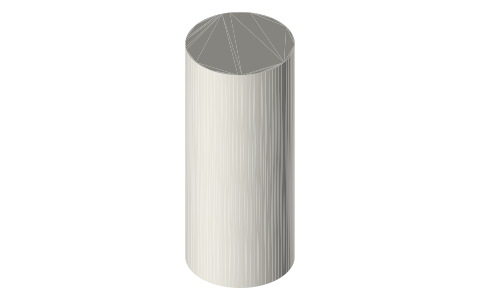

16 oz tall can (473 ml)66×66×157.23 mm★ 1 fileFree
8.4 oz slim can (250 ml)53×53×133.0 mm★ 1 fileFree

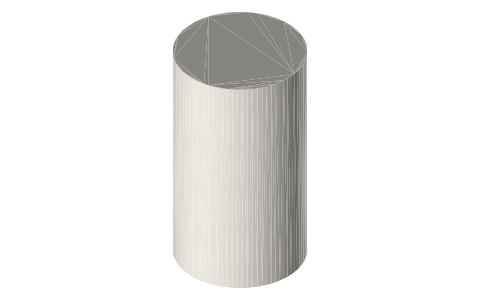

7.5 oz mini can (222 ml)57.6×57.6×103.84 mm★ 1 file
Questions
How tall is a 19.2 oz can?
188.11 mm (7.41 in).
