ATOMRC Dolphin 845mm FPV plane

What are the dimensions of the ATOMRC Dolphin 845mm FPV plane? · Modern device · basis: Secondary source: GetFPV (retailer) (copy of the maker's figures; the maker publishes none directly)

Also called: atomrc dolphin dimensions, atomrc dolphin wingspan, dolphin 845mm length, atomrc dolphin motor, atomrc dolphin battery, dolphin fpv plane size, atomrc dolphin prop, atomrc dolphin spannweite, atomrc dolphin envergadura

Exact dimensions. True size, with no printing tolerance added.

length
710 mm
width
845 mm

Notes

  • Retailer copy of ATOMRC specs (secondary). Plan-view envelope only.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

ATOMRC Dolphin 845mm FPV plane size chart

dimensionvalue
Wingspan845 mm (33.2 in)
Length710 mm (28 in)
Package dimension660 × 225 × 135 mm (unlabelled on page)
Motor2306 1700 Kv
ESC30 A with 5 V/3 A BEC
Propeller5–6 in recommended
Servos2 × 9 g
Battery4S 1300–2200 mAh
FPV camera (FPV version)Foxeer Razer Nano 14 mm
Heightnot published

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

GetFPV (retailer)ATOMRC Dolphin 845mm Wingspan FPV RC AirplanewebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

atomrc-dolphin-845mm-plan-outlinePlan outline 710 × 845 mm, 1 mm reference thickness (height not published)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=atomrc-dolphin-845mm

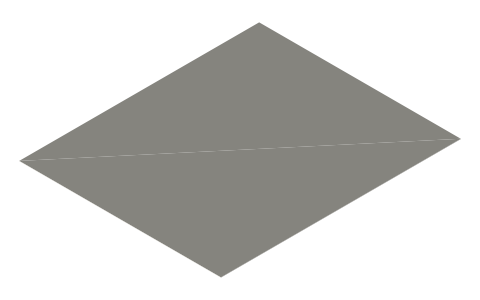

ATOMRC Dolphin 845mm FPV plane, isometric render of a generated part
