Axial AXI235098 screws, M2.5 × 8 mm

What size are Axial AXI235098 screws? · Modern device · basis: Maker's parts list (Axial)

Also called: Axial AXI235098, axial AXI235098, Axial part AXI235098, AXI235098 m2.5 x 8mm button head screw, Axial AXI235098 size, Axial AXI235098 dimensions, Axial AXI235098 replacement, repuesto Axial AXI235098, Axial AXI235098 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
4.71 mm
width
4.71 mm
height
9.51 mm

Notes

  • Axial part AXI235098: M2.5 x 8mm Button Head Screw (10). Size exactly as printed in Axial's parts list; the file is built from that size only.
  • M2.5 × 8 mm, shank as a plain Ø2.5 cylinder, ISO 7380 button head Ø4.7 × 1.5 mm.
  • True size, no printing tolerance added.
  • Axial prints the thread and length; the head is drawn to the ISO 7380 button head standard (from the catalog's screw page) because the maker gives no head size.

Axial AXI235098 screws, M2.5 × 8 mm size chart

dimensionvalue
part numberAxial AXI235098
name (as printed)M2.5 x 8mm Button Head Screw (10)
size (as printed)M2.5 x 8mm button head
threadM2.5
length8 mm
head (drawn)ISO 7380 button head: Ø4.7 × 1.5 mm — head size not printed by Axial
used inaxial-scx10-iii-jeep-cj-7

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Axial (Horizon Hobby) (manual hosted by Astra Model)SCX10 III Jeep CJ-7 RTR (AXI03008) instruction manual, parts list, p. 58webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

axial-axi235098-m2-5-x-8mm-button-head-screw-envelopeM2.5 × 8 mm, shank as a plain Ø2.5 cylinder, ISO 7380 button head Ø4.7 × 1.5 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=axial-axi235098-m2-5-x-8mm-button-head-screw

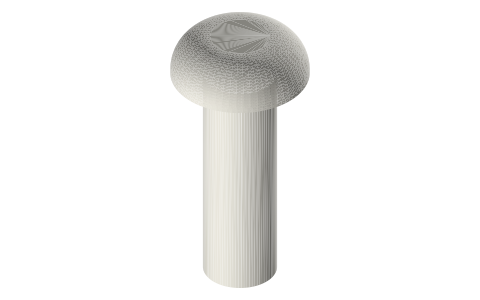

Axial AXI235098 screws, M2.5 × 8 mm, isometric render of a generated part
Render of axial-axi235098-m2-5-x-8mm-button-head-screw-envelope from the free STEP; not to scale.
