Axial AXI235102 screws, M2.5 × 18 mm

What size are Axial AXI235102 screws? · Modern device · basis: Maker's parts list (Axial)

Also called: Axial AXI235102, axial AXI235102, Axial part AXI235102, AXI235102 m2.5 x 18mm button head screw, Axial AXI235102 size, Axial AXI235102 dimensions, Axial AXI235102 replacement, repuesto Axial AXI235102, Axial AXI235102 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
4.71 mm
width
4.71 mm
height
19.51 mm

Notes

  • Axial part AXI235102: M2.5 x 18mm Button Head Screw (10). Size exactly as printed in Axial's parts list; the file is built from that size only.
  • M2.5 × 18 mm, shank as a plain Ø2.5 cylinder, ISO 7380 button head Ø4.7 × 1.5 mm.
  • True size, no printing tolerance added.
  • Axial prints the thread and length; the head is drawn to the ISO 7380 button head standard (from the catalog's screw page) because the maker gives no head size.

Axial AXI235102 screws, M2.5 × 18 mm size chart

dimensionvalue
part numberAxial AXI235102
name (as printed)M2.5 x 18mm Button Head Screw (10)
size (as printed)M2.5 x 18mm button head
threadM2.5
length18 mm
head (drawn)ISO 7380 button head: Ø4.7 × 1.5 mm — head size not printed by Axial
used inaxial-scx10-iii-jeep-cj-7

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Axial (Horizon Hobby) (manual hosted by Astra Model)SCX10 III Jeep CJ-7 RTR (AXI03008) instruction manual, parts list, p. 58webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

axial-axi235102-m2-5-x-18mm-button-head-screw-envelopeM2.5 × 18 mm, shank as a plain Ø2.5 cylinder, ISO 7380 button head Ø4.7 × 1.5 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=axial-axi235102-m2-5-x-18mm-button-head-screw

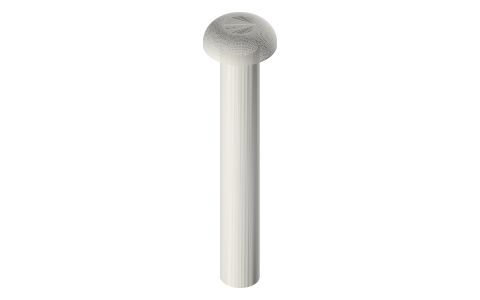

Axial AXI235102 screws, M2.5 × 18 mm, isometric render of a generated part
Render of axial-axi235102-m2-5-x-18mm-button-head-screw-envelope from the free STEP; not to scale.

Fits with

Axial SCX10 III Jeep CJ-7 parts list, isometric render of a generated part
Axial SCX10 III Jeep CJ-7 parts list106 sizes★ 16 files
Socket head cap screws, M2–M8 (ISO 4762 / DIN 912), isometric render of a generated part
Socket head cap screws, M2–M8 (ISO 4762 / DIN 912)7 sizes★ 47 files
Button head socket screws, M2–M8 (ISO 7380), isometric render of a generated part
Button head socket screws, M2–M8 (ISO 7380)7 sizes★ 35 files
Countersunk socket screws, M2–M8 (ISO 10642 / DIN 7991), isometric render of a generated part
Countersunk socket screws, M2–M8 (ISO 10642 / DIN 7991)7 sizes★ 35 files

Questions

What size are Axial AXI235102 screws?

M2.5 × 18 mm
