Axial AXI235110 screws, M3 × 16 mm

What size are Axial AXI235110 screws? · Modern device · basis: Maker's parts list (Axial)

Also called: Axial AXI235110, axial AXI235110, Axial part AXI235110, AXI235110 m3 x 16mm button head screw, Axial AXI235110 size, Axial AXI235110 dimensions, Axial AXI235110 replacement, repuesto Axial AXI235110, Axial AXI235110 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
5.71 mm
width
5.71 mm
height
17.66 mm

Notes

  • Axial part AXI235110: M3 x 16mm Button Head Screw (10). Size exactly as printed in Axial's parts list; the file is built from that size only.
  • M3 × 16 mm, shank as a plain Ø3 cylinder, ISO 7380 button head Ø5.7 × 1.65 mm.
  • True size, no printing tolerance added.
  • Axial prints the thread and length; the head is drawn to the ISO 7380 button head standard (from the catalog's screw page) because the maker gives no head size.

Axial AXI235110 screws, M3 × 16 mm size chart

dimensionvalue
part numberAxial AXI235110
name (as printed)M3 x 16mm Button Head Screw (10)
size (as printed)M3 x 16mm button head
threadM3
length16 mm
head (drawn)ISO 7380 button head: Ø5.7 × 1.65 mm — head size not printed by Axial
used inaxial-scx10-iii-jeep-cj-7

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Axial (Horizon Hobby) (manual hosted by Astra Model)SCX10 III Jeep CJ-7 RTR (AXI03008) instruction manual, parts list, p. 58webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

axial-axi235110-m3-x-16mm-button-head-screw-envelopeM3 × 16 mm, shank as a plain Ø3 cylinder, ISO 7380 button head Ø5.7 × 1.65 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=axial-axi235110-m3-x-16mm-button-head-screw

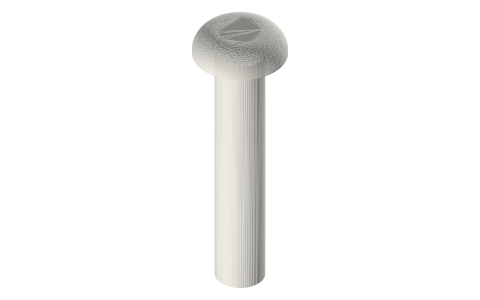

Axial AXI235110 screws, M3 × 16 mm, isometric render of a generated part
