Axial AXI235169 screws, M2.5 × 12 mm

What size are Axial AXI235169 screws? · Modern device · basis: Maker's parts list (Axial)

Also called: Axial AXI235169, axial AXI235169, Axial part AXI235169, AXI235169 m2.5 x 12mm flat head screw, Axial AXI235169 size, Axial AXI235169 dimensions, Axial AXI235169 replacement, repuesto Axial AXI235169, Axial AXI235169 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
5.53 mm
width
5.53 mm
height
13.52 mm

Notes

  • Axial part AXI235169: M2.5 x 12mm Flat Head Screw (10). Size exactly as printed in Axial's parts list; the file is built from that size only.
  • M2.5 × 12 mm, shank as a plain Ø2.5 cylinder, ISO 10642 flat (countersunk) head Ø5.5 × 1.5 mm.
  • True size, no printing tolerance added.
  • Axial prints the thread and length; the head is drawn to the ISO 10642 flat (countersunk) head standard (from the catalog's screw page) because the maker gives no head size.

Axial AXI235169 screws, M2.5 × 12 mm size chart

dimensionvalue
part numberAxial AXI235169
name (as printed)M2.5 x 12mm Flat Head Screw (10)
size (as printed)M2.5 x 12mm flat head
threadM2.5
length12 mm
head (drawn)ISO 10642 flat (countersunk) head: Ø5.5 × 1.5 mm — head size not printed by Axial
used inaxial-scx10-iii-jeep-cj-7

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Axial (Horizon Hobby) (manual hosted by Astra Model)SCX10 III Jeep CJ-7 RTR (AXI03008) instruction manual, parts list, p. 58webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

axial-axi235169-m2-5-x-12mm-flat-head-screw-envelopeM2.5 × 12 mm, shank as a plain Ø2.5 cylinder, ISO 10642 flat (countersunk) head Ø5.5 × 1.5 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=axial-axi235169-m2-5-x-12mm-flat-head-screw

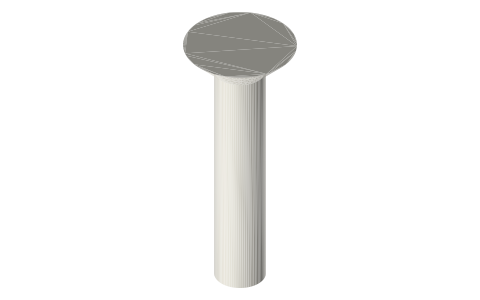

Axial AXI235169 screws, M2.5 × 12 mm, isometric render of a generated part
Render of axial-axi235169-m2-5-x-12mm-flat-head-screw-envelope from the free STEP; not to scale.
