Axial AXI235178 screws, M3 × 14 mm

What size are Axial AXI235178 screws? · Modern device · basis: Maker's parts list (Axial)

Also called: Axial AXI235178, axial AXI235178, Axial part AXI235178, AXI235178 m3 x 14mm flat head screw, Axial AXI235178 size, Axial AXI235178 dimensions, Axial AXI235178 replacement, repuesto Axial AXI235178, Axial AXI235178 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
6.03 mm
width
6.03 mm
height
15.72 mm

Notes

  • Axial part AXI235178: M3 x 14mm Flat Head Screw (10). Size exactly as printed in Axial's parts list; the file is built from that size only.
  • M3 × 14 mm, shank as a plain Ø3 cylinder, ISO 10642 flat (countersunk) head Ø6 × 1.7 mm.
  • True size, no printing tolerance added.
  • Axial prints the thread and length; the head is drawn to the ISO 10642 flat (countersunk) head standard (from the catalog's screw page) because the maker gives no head size.

Axial AXI235178 screws, M3 × 14 mm size chart

dimensionvalue
part numberAxial AXI235178
name (as printed)M3 x 14mm Flat Head Screw (10)
size (as printed)M3 x 14mm flat head
threadM3
length14 mm
head (drawn)ISO 10642 flat (countersunk) head: Ø6 × 1.7 mm — head size not printed by Axial
used inaxial-scx10-iii-jeep-cj-7

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Axial (Horizon Hobby) (manual hosted by Astra Model)SCX10 III Jeep CJ-7 RTR (AXI03008) instruction manual, parts list, p. 58webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

axial-axi235178-m3-x-14mm-flat-head-screw-envelopeM3 × 14 mm, shank as a plain Ø3 cylinder, ISO 10642 flat (countersunk) head Ø6 × 1.7 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=axial-axi235178-m3-x-14mm-flat-head-screw

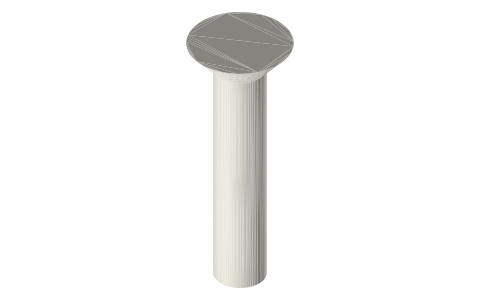

Axial AXI235178 screws, M3 × 14 mm, isometric render of a generated part
