BetaFPV Meteor65 Pro brushless whoop frame parts list
What parts does the BetaFPV Meteor65 Pro brushless whoop frame use, and what sizes are they? · Modern device · basis: Maker's manual / official spare-parts listing: part numbers and sizes as printed
Also called: BetaFPV Meteor65 Pro brushless whoop frame part numbers, BetaFPV Meteor65 Pro brushless whoop frame replacement parts, BetaFPV Meteor65 Pro brushless whoop frame spare parts, BetaFPV Meteor65 Pro brushless whoop frame parts diagram, BetaFPV Meteor65 Pro brushless whoop frame exploded view, BetaFPV Meteor65 Pro brushless whoop frame bearings, BetaFPV Meteor65 Pro brushless whoop frame screw sizes,
Exact dimensions. True size, with no printing tolerance added.
- length
- 26 mm
- width
- 26 mm
Notes
- Every part number the maker publishes for the BetaFPV Meteor65 Pro brushless whoop frame — 9 parts, 7 with sizes printed in the source (bearings, screws, pins, props, servos, motors, batteries…). Sizes are copied exactly as printed; "not published" means the source gives none.
- The file is the vehicle's own true-size envelope (the same as its main page). Molded parts' shapes are not published, so they are not modelled; standard hardware links to its own pages.
- Use it to rebuild or re-print the vehicle: order the numbered parts, print the rest to the published sizes.
BetaFPV Meteor65 Pro brushless whoop frame parts list size chart
| part number | part | group | sizes (as printed) | qty | also fits |
|---|---|---|---|---|---|
| not published | Meteor65 Pro brushless whoop frame | frame/arms | 65 mm wheelbase; 3.20 g; FC 26 × 26 mm (25.5 compatible); motor holes 3-M1.4 on Φ6.6 mm; 35 mm or 31 mm props | 1 | — |
| 0802SE 19500KV | BetaFPV 0802SE 19500KV motor | propulsion | 0802 stator; mounts 3-M1.4 on Φ6.6 mm (frame spec) | 4 | — |
| not published | Gemfan 35 mm 3-blade propeller | props | 35 mm; bore not published | 4 in box | — |
| Matrix 1S 3IN1 HD FC | BetaFPV Matrix 1S 3-in-1 HD FC (FC + 12 A ESC + ELRS 2.4G RX) | electronics | mounts 26 × 26 mm (frame); board size not published | 1 | — |
| not published | SH1.0 4-pin adapter cable; Type-C to SH1.0 adapter | electronics | SH1.0 4-pin | 1 each | — |
| not published | Canopy for DJI O4 Air Unit | camera/gimbal | not published | 1 | — |
| not published | Shock-absorbing balls for DJI O4 camera | camera/gimbal | not published | 4 | — |
| not published | LAVA 1S 300 mAh battery | battery | 1S 300 mAh; connector not published | 1 | — |
| not published | Hardware set | hardware | screw sizes not published | 1 | — |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| KiwiQuads | BetaFPV Meteor65 Pro Brushless Whoop Frame | web | Publisher's page; dimensions are facts |
| GetFPV | BetaFPV Meteor65 Pro Brushless Whoop (ELRS 2.4GHz) | web | Publisher's page; dimensions are facts |
Free files
★ Free files 2 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
| betafpv-meteor65-pro-frame-fc-hole-pattern | FC holes on a 26 × 26 mm square — template disc | STEP · STL |

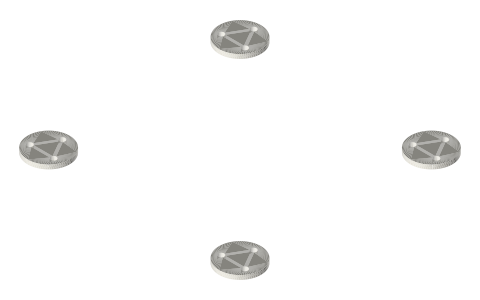

| betafpv-meteor65-pro-frame-motor-hole-patterns | Motor mounts: 3 × M1.4 on Ø6.6 mm at the corners of a 65 mm diagonal — template discs | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=betafpv-meteor65-pro-frame-parts-list
Fits with
Questions
Where do the BetaFPV Meteor65 Pro brushless whoop frame part numbers come from?
The maker's manual or official spare-parts listing; every row cites its source.
How many parts are listed for the BetaFPV Meteor65 Pro brushless whoop frame?
9, of which 7 have sizes printed by the maker.
