Bosch ProCORE18V 8.0Ah battery (Bosch Professional 18V)

What are the dimensions of the Bosch ProCORE18V 8.0Ah battery? · Modern device · basis: Bosch Professional (official) spec page

Also called: bosch procore18v 8.0ah dimensions, bosch procore18v 8.0ah size, bosch battery dimensions, batería Bosch ProCORE18V 8.0Ah medidas, bateria Bosch ProCORE18V 8.0Ah dimensões, Bosch ProCORE18V 8.0Ah Akku Maße, batterie Bosch ProCORE18V 8.0Ah dimensions

Exact dimensions. True size, with no printing tolerance added.

length
117 mm
width
77 mm
height
70 mm

Notes

  • Bosch ProCORE18V 8.0Ah (Bosch Professional 18V, 8 Ah): 117 × 77 × 70 mm (4.61 × 3.03 × 2.76 in), 0.95 kg, as published by the maker.
  • Overall envelope only: the slide rail, latch and terminal geometry are not published by the maker (Xem measured scan planned).
  • The file is a plain envelope box of the published size — model your holder or adapter around it, then check a real pack.

Bosch ProCORE18V 8.0Ah battery size chart

dimensionvalue
length117 mm
width77 mm
height70 mm
weight0.95 kg
capacity8 Ah
platformBosch Professional 18V

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

BoschProCORE18V 8.0Ah specificationswebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

bosch-procore18v-8-0ah-battery-envelopeEnvelope of the published size 117 × 77 × 70 mm (rail and terminals not modelled)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=bosch-procore18v-8-0ah-battery

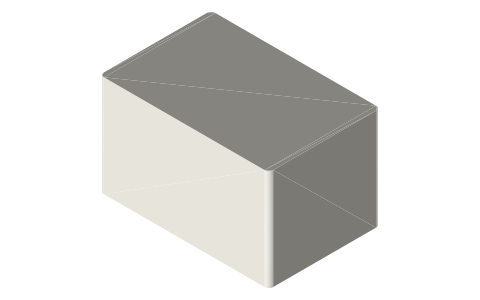

Bosch ProCORE18V 8.0Ah battery (Bosch Professional 18V), isometric render of a generated part
