DJI 4726 FM propeller, Ø119.38 mm

What size is the DJI 4726 FM propeller? · Modern device · basis: Maker's parts list (DJI)

Also called: DJI 4726 FM, dji 4726 FM, DJI part 4726 FM, 4726 FM dji mini 2 propeller (pair), DJI 4726 FM size, DJI 4726 FM dimensions, DJI 4726 FM replacement, repuesto DJI 4726 FM, DJI 4726 FM Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
119.46 mm
width
119.46 mm
height
1.08 mm

Notes

  • DJI part 4726 FM: DJI Mini 2 propeller (pair). Size exactly as printed in DJI's parts list; the file is built from that size only.
  • Swept disc Ø119.38 mm, 1 mm reference — blades and hub not published.
  • True size, no printing tolerance added.

DJI 4726 FM propeller, Ø119.38 mm size chart

dimensionvalue
part numberDJI 4726 FM
name (as printed)DJI Mini 2 propeller (pair)
size (as printed)4.7 × 2.6 in (119.38 × 66.04 mm); 0.6 g each; screw-on (two screws per blade root)
diameter119.38 mm
used inDJI Mini 2

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

DJI StoreDJI Mini 2 PropellerswebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

dji-4726-fm-dji-mini-2-propeller-pair-swept-discSwept disc Ø119.38 mm, 1 mm reference — blades and hub not publishedSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=dji-4726-fm-dji-mini-2-propeller-pair

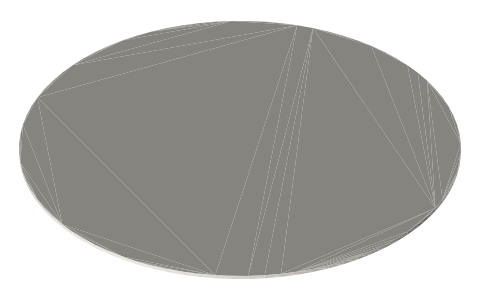

DJI 4726 FM propeller, Ø119.38 mm, isometric render of a generated part
Render of dji-4726-fm-dji-mini-2-propeller-pair-swept-disc from the free STEP; not to scale.

Fits with

DJI Mini 2 parts list, isometric render of a generated part
DJI Mini 2 parts list138×81×58 mm★ 2 files
length
DJI Mini 2138×81×58 mm★ 1 file

Questions

What size is the DJI 4726 FM propeller?

Ø119.38 mm
