E-flite Habu XS 80mm EDF jet

What are the dimensions of the E-flite Habu XS 80mm EDF jet? · Modern device · basis: Manufacturer specifications (Horizon Hobby / E-flite)

Also called: habu xs dimensions, habu xs 80mm wingspan, habu xs length, efl02450 specs, habu xs battery, habu xs cg, e-flite habu edf size, habu xs spannweite, habu xs envergadura

Exact dimensions. True size, with no printing tolerance added.

length
1252 mm
width
1113 mm

Notes

  • From the E-flite Habu XS 80mm EDF manual (EFL02450 BNF Basic / EFL02475 PNP). Plan-view envelope only.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.

E-flite Habu XS 80mm EDF jet size chart

dimensionvalue
Wingspan43.8 in (1113 mm)
Length49.3 in (1252 mm)
Flying weight96.72 oz (2742 g) with 6S 5000 mAh
Motor3665 2170 Kv brushless inrunner 4-pole
Fan80 mm 12-blade EDF
ESCAvian 130 A Smart
Servos8 × A347 9 g metal-geared digital
ReceiverSpektrum AR637TA+
Recommended battery6S 22.2 V 5000 mAh 50C Smart G2, IC5
CG115–135 mm behind leading edge where wing meets fuselage
Heightnot published

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Horizon Hobby / E-fliteEFL02450 / EFL02475 manualwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

e-flite-habu-xs-80mm-edf-plan-outlinePlan outline 1252 × 1113 mm, 1 mm reference thickness (height not published)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=e-flite-habu-xs-80mm-edf

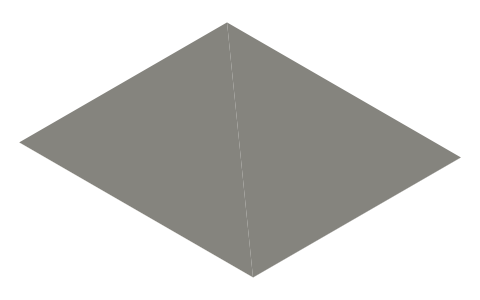

E-flite Habu XS 80mm EDF jet, isometric render of a generated part
Render of e-flite-habu-xs-80mm-edf-plan-outline from the free STEP; not to scale.

Fits with

RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors, isometric render of a generated part
RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors12 sizes★ 4 files

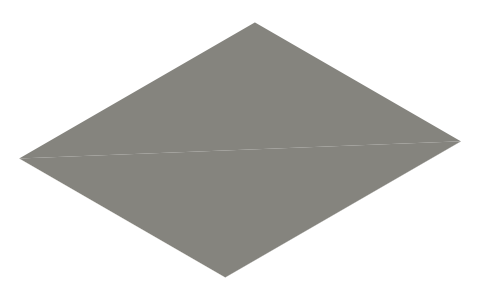

E-flite P-51D Mustang 1.2m, isometric render of a generated part
E-flite P-51D Mustang 1.2m1065×1219 mm★ 1 file

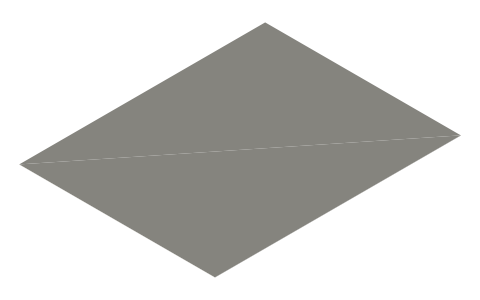

E-flite F4U-4 Corsair 1.2m, isometric render of a generated part
E-flite F4U-4 Corsair 1.2m970.28×1220 mm★ 1 file

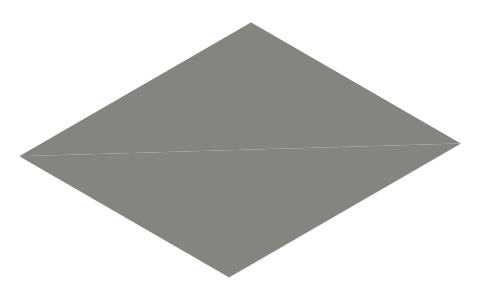

FMS P-51 Mustang 1100mm V2, isometric render of a generated part
FMS P-51 Mustang 1100mm V2968×1070 mm★ 1 file

Questions

What battery does the Habu XS use?

6S 22.2 V 5000 mAh 50C Smart G2 LiPo with IC5 connector.
