E-flite P-51D Mustang 1.2m

What are the dimensions of the E-flite P-51D Mustang 1.2m? · Modern device · basis: Secondary source: Big Boys With Cool Toys (retailer) (copy of the maker's figures; the maker publishes none directly)

Also called: e-flite p-51 1.2m dimensions, p-51d mustang 1.2m wingspan, efl089500 specs, p51 1.2m length, e-flite p51 prop size, p-51d 1.2m battery, e-flite mustang 1.2m weight, p-51 mustang 1.2m spannweite, p-51 1.2m envergadura, cripes a mighty 3rd 1.2m

Exact dimensions. True size, with no printing tolerance added.

length
1065 mm
width
1219 mm

Notes

  • Figures are from a retailer copy of Horizon's spec sheet for the P-51D Mustang 1.2m (EFL089500 BNF Basic), so the entry is secondary.
  • Plan-view envelope only; height and CG are not published there.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

E-flite P-51D Mustang 1.2m size chart

dimensionvalue
Wingspan47.99 in (1219 mm)
Length41.93 in (1065 mm)
Weight without battery47.9 oz (1358 g)
MotorBL15 850 Kv
Propeller10.5 × 8 × 4 (4-blade)
Servos(6) micro servos (installed)
Recommended battery3S 11.1 V or 4S 14.8 V 2200–3200 mAh LiPo, EC3 or IC3
Heightnot published

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Big Boys With Cool Toys (retailer)EFL089500 P-51D Mustang 1.2m BNF BasicwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

e-flite-p-51d-mustang-1-2m-plan-outlinePlan outline 1065 × 1219 mm, 1 mm reference thickness (height not published)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=e-flite-p-51d-mustang-1-2m

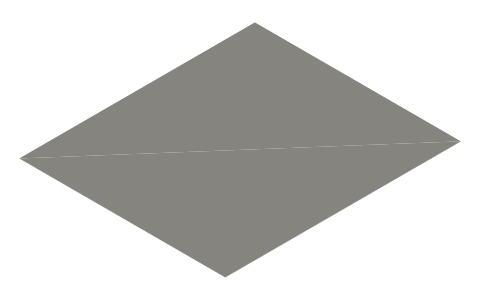

E-flite P-51D Mustang 1.2m, isometric render of a generated part
Render of e-flite-p-51d-mustang-1-2m-plan-outline from the free STEP; not to scale.

Fits with

RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors, isometric render of a generated part
RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors12 sizes★ 4 files

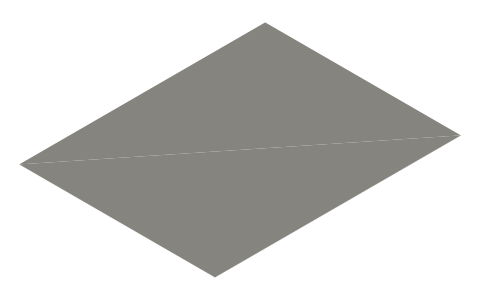

E-flite F4U-4 Corsair 1.2m, isometric render of a generated part
E-flite F4U-4 Corsair 1.2m970.28×1220 mm★ 1 file

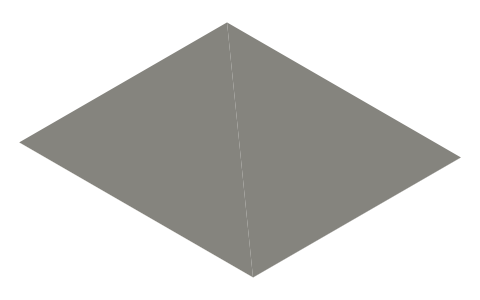

E-flite Habu XS 80mm EDF jet, isometric render of a generated part
E-flite Habu XS 80mm EDF jet1252×1113 mm★ 1 file
FMS P-51 Mustang 1100mm V2, isometric render of a generated part
FMS P-51 Mustang 1100mm V2968×1070 mm★ 1 file

Questions

What prop does the E-flite P-51D 1.2m use?

A 10.5 × 8 four-blade prop on a BL15 850 Kv motor.
