E-flite UMX Timber X (700 mm)

What are the dimensions of the E-flite UMX Timber X? · Modern device · basis: Secondary source: Big Boys With Cool Toys (retailer) (copy of the maker's figures; the maker publishes none directly)

Also called: umx timber x dimensions, umx timber x wingspan, eflu7950 specs, umx timber x length, umx timber x battery, umx timber x prop, umx timber x cg, e-flite micro timber size, umx timber x spannweite, umx timber x envergadura

Exact dimensions. True size, with no printing tolerance added.

length
483 mm
width
700 mm

Notes

  • UMX Timber X (EFLU7950) is the 700 mm micro version of the Timber X. Figures come from a retailer copy of Horizon's spec sheet (secondary).
  • The file models the 700 × 483 mm plan-view envelope only.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

E-flite UMX Timber X size chart

dimensionvalue
Wingspan27.6 in (700 mm)
Length19 in (483 mm)
Product weight4.4 oz (123 g)
Motor180BL 3400 Kv brushless outrunner
Propeller4.7 × 2.75 in (120 × 70 mm)
Servos5 linear servos (installed)
Recommended battery2S 280 mAh, JST-PH
CG1.1 in (28 mm) behind leading edge at the fuselage
Heightnot published

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Big Boys With Cool Toys (retailer)EFLU7950 UMX Timber X BNF BasicwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

e-flite-umx-timber-x-plan-outlinePlan outline 483 × 700 mm, 1 mm reference thickness (height not published)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=e-flite-umx-timber-x

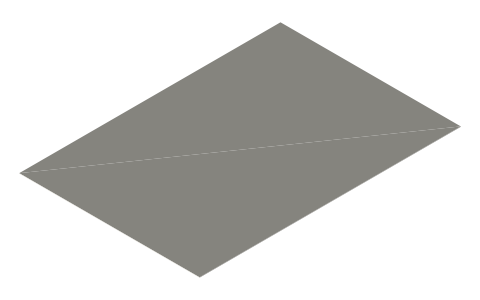

E-flite UMX Timber X (700 mm), isometric render of a generated part
Render of e-flite-umx-timber-x-plan-outline from the free STEP; not to scale.

Fits with

RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors, isometric render of a generated part
RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors12 sizes★ 4 files

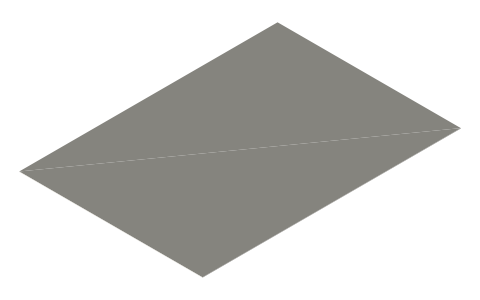

E-flite UMX Turbo Timber Evolution (700 mm), isometric render of a generated part
E-flite UMX Turbo Timber Evolution (700 mm)495×698 mm★ 1 file

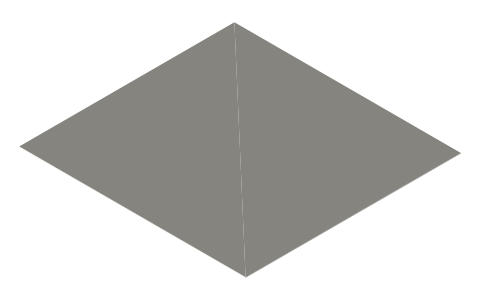

E-flite UMX F-86 Sabre 30mm EDF, isometric render of a generated part
E-flite UMX F-86 Sabre 30mm EDF466×443 mm★ 1 file

Questions

What is the CG of the UMX Timber X?

1.1 in (28 mm) back from the wing leading edge at the fuselage.
