E-flite UMX Turbo Timber Evolution (700 mm)

What are the dimensions of the E-flite UMX Turbo Timber Evolution? · Modern device · basis: Secondary source: ReadyMadeRC (retailer), Horizon Hobby (manual via ManualsLib) (copy of the maker's figures; the maker publishes none directly)

Also called: umx turbo timber evolution dimensions, umx turbo timber wingspan, turbo timber evo length, eflu15950 specs, umx turbo timber prop size, umx turbo timber battery, umx turbo timber 1208 motor, umx turbo timber evo weight, turbo timber evolution spannweite, turbo timber evolution envergadura

Exact dimensions. True size, with no printing tolerance added.

length
495 mm
width
698 mm

Notes

  • The UMX Turbo Timber Evolution (EFLU15950) is the 700 mm micro STOL plane. Wingspan and motor come from the E-flite manual; length, weight and prop from a retailer copy of the spec sheet, so the entry is marked secondary.
  • Only the plan-view envelope is modelled; height is not published.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

E-flite UMX Turbo Timber Evolution size chart

dimensionvalue
Wingspan27.48 in (698 mm)
Length19.49 in (495 mm)
Weight5.4 oz (153 g) (as listed; not stated whether with battery)
Motor1208 brushless outrunner, 2150 Kv, 12-pole (SPMXAM1208B)
Propeller120 × 70 mm, 3-blade
Servos5 linear servos: 2.3 g long-throw (SPMSA200) and 2.9 g long-throw (SPMSA202)
Battery2S 7.4 V or 3S 11.1 V 280–300 mAh LiPo, JST-RCY
Heightnot published

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ReadyMadeRC (retailer)UMX Turbo Timber Evolution BNF BasicwebPublisher's page; dimensions are facts
Horizon Hobby (manual via ManualsLib)E-flite UMX Turbo Timber Evolution manualwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

e-flite-umx-turbo-timber-evolution-plan-outlinePlan outline 495 × 698 mm, 1 mm reference thickness (height not published)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=e-flite-umx-turbo-timber-evolution

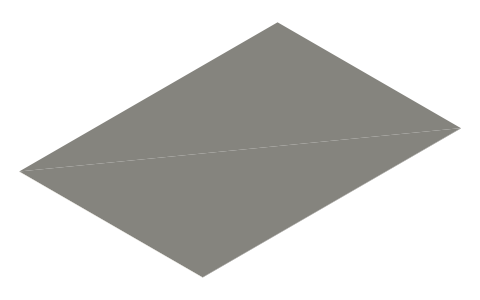

E-flite UMX Turbo Timber Evolution (700 mm), isometric render of a generated part
Render of e-flite-umx-turbo-timber-evolution-plan-outline from the free STEP; not to scale.

Fits with

RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors, isometric render of a generated part
RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors12 sizes★ 4 files

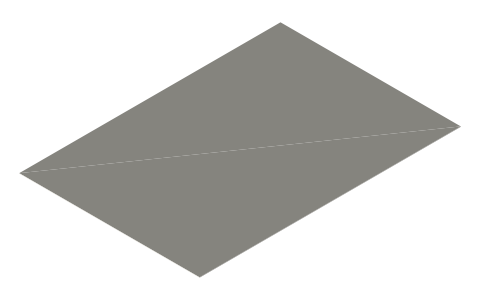

E-flite UMX Timber X (700 mm), isometric render of a generated part
E-flite UMX Timber X (700 mm)483×700 mm★ 1 file

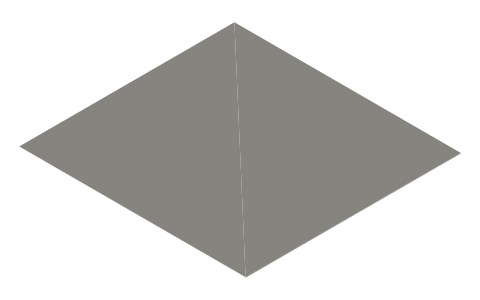

E-flite UMX F-86 Sabre 30mm EDF, isometric render of a generated part
