Foxeer Lollipop 4 Plus 5.8 GHz antenna, 6 cm

What are the dimensions of the Foxeer Lollipop 4 Plus 5.8 GHz antenna, 6 cm? · Modern device · basis: Secondary source: Rotorama (copy of the maker's figures; the maker publishes none directly)

Also called: Foxeer Lollipop 4 Plus 6cm dimensions, Foxeer Lollipop 4 Plus 6cm size, Foxeer Lollipop 4 Plus 6cm weight, Foxeer Lollipop 4 Plus 6cm mm, how big is the Foxeer Lollipop 4 Plus 6cm, dimensiones Foxeer Lollipop 4 Plus 6cm, medidas Foxeer Lollipop 4 Plus 6cm, Foxeer Lollipop 4 Plus 6cm Abmessungen, antenna length, Foxeer Lollipop 4 Plus 6cm mount

Exact dimensions. True size, with no printing tolerance added.

length
17 mm
width
17 mm
height
60 mm

Notes

  • Stubby version, as listed by Rotorama.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

Foxeer Lollipop 4 Plus 5.8 GHz antenna, 6 cm size chart

dimensionvalue
Length60 mm
Protector diameter17 mm
Weight7.8 g
ConnectorRP-SMA / SMA
Gain2.6 dBi

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

RotoramaFoxeer Lollipop 4 Plus 6cm LHCP SMA/RP-SMAwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

foxeer-lollipop-4-plus-6cm-envelopeEnvelope Ø17 × 60 mm (antenna envelope: diameter × overall length incl. connector)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=foxeer-lollipop-4-plus-6cm

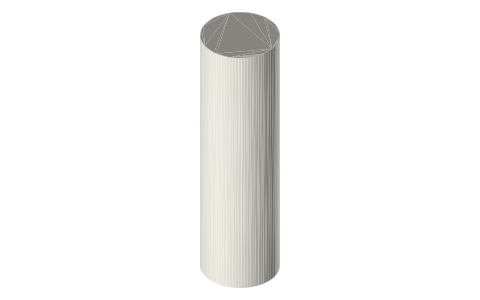

Foxeer Lollipop 4 Plus 5.8 GHz antenna, 6 cm, isometric render of a generated part
Render of foxeer-lollipop-4-plus-6cm-envelope from the free STEP; not to scale.

Fits with

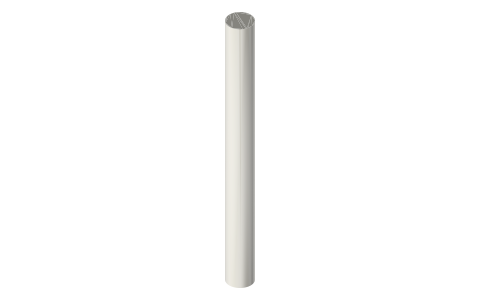

TrueRC Singularity 5.8 GHz SMA Long antenna, isometric render of a generated part
TrueRC Singularity 5.8 GHz SMA Long antenna11.8×11.8×125 mm★ 1 file

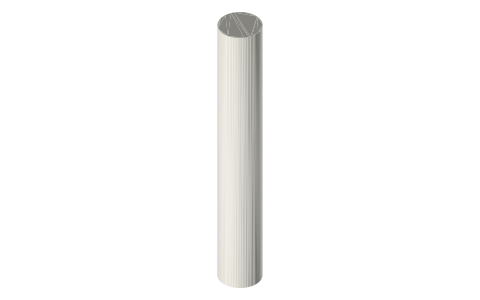

TrueRC Singularity 5.8 GHz SMA90 antenna, isometric render of a generated part
TrueRC Singularity 5.8 GHz SMA90 antenna11.8×11.8×80 mm★ 1 file
Foxeer Lollipop 4 Plus 5.8 GHz antenna, SMA, 15 cm, isometric render of a generated part
Foxeer Lollipop 4 Plus 5.8 GHz antenna, SMA, 15 cm17×17×150 mm★ 1 file
Foxeer Lollipop 4 Plus 5.8 GHz antenna, SMA, 10 cm, isometric render of a generated part
Foxeer Lollipop 4 Plus 5.8 GHz antenna, SMA, 10 cm17×17×100 mm★ 1 file

Questions

How long is the short Lollipop 4+?

60 mm, Ø17 mm protector, 7.8 g.
