TrueRC Singularity 5.8 GHz SMA Long antenna

What are the dimensions of the TrueRC Singularity 5.8 GHz SMA Long antenna? · Modern device · basis: Secondary source: GetFPV (copy of the maker's figures; the maker publishes none directly)

Also called: TrueRC Singularity dimensions, TrueRC Singularity size, TrueRC Singularity weight, TrueRC Singularity mm, how big is the TrueRC Singularity, dimensiones TrueRC Singularity, medidas TrueRC Singularity, TrueRC Singularity Abmessungen, antenna length, TrueRC Singularity mount

Exact dimensions. True size, with no printing tolerance added.

length
11.8 mm
width
11.8 mm
height
125 mm

Notes

  • GetFPV lists 'Size: 11.8mm x 125mm' without labels; read as diameter × length.
  • Modelled as a Ø11.8 × 125 mm cylinder.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

TrueRC Singularity 5.8 GHz SMA Long antenna size chart

dimensionvalue
Size11.8 mm × 125 mm
Weight5.39 g
ConnectorSMA

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

GetFPVTrueRC Singularity 5.8 SMA Long Antenna (LHCP)webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

truerc-singularity-5-8-sma-long-envelopeEnvelope Ø11.8 × 125 mm (antenna envelope: diameter × overall length incl. connector)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=truerc-singularity-5-8-sma-long

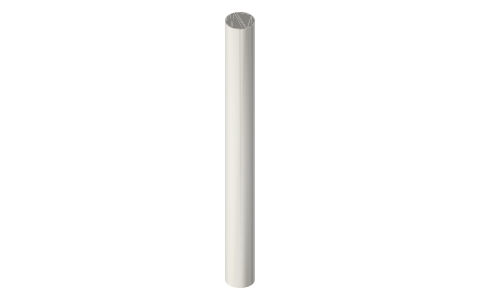

TrueRC Singularity 5.8 GHz SMA Long antenna, isometric render of a generated part
Render of truerc-singularity-5-8-sma-long-envelope from the free STEP; not to scale.

Fits with

TrueRC Singularity 5.8 GHz SMA90 antenna, isometric render of a generated part
TrueRC Singularity 5.8 GHz SMA90 antenna11.8×11.8×80 mm★ 1 file

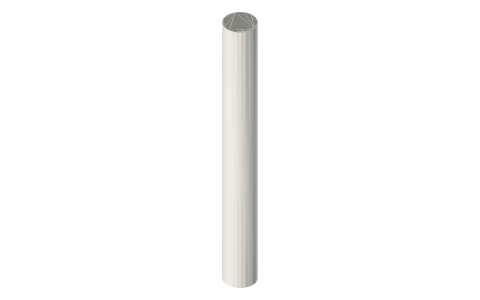

Foxeer Lollipop 4 Plus 5.8 GHz antenna, SMA, 15 cm, isometric render of a generated part
Foxeer Lollipop 4 Plus 5.8 GHz antenna, SMA, 15 cm17×17×150 mm★ 1 file
Foxeer Lollipop 4 Plus 5.8 GHz antenna, SMA, 10 cm, isometric render of a generated part
Foxeer Lollipop 4 Plus 5.8 GHz antenna, SMA, 10 cm17×17×100 mm★ 1 file

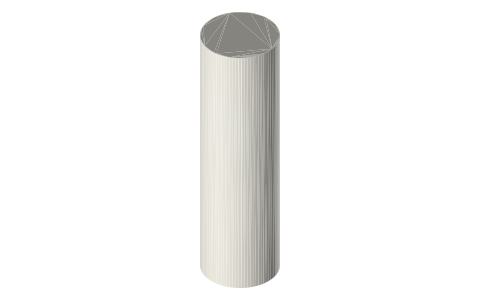

Foxeer Lollipop 4 Plus 5.8 GHz antenna, 6 cm, isometric render of a generated part
Foxeer Lollipop 4 Plus 5.8 GHz antenna, 6 cm17×17×60 mm★ 1 file

Questions

How long is the TrueRC Singularity SMA Long?

125 mm, 11.8 mm across, 5.39 g.
