Freewing Avanti S 80mm EDF sport jet

What are the dimensions of the Freewing Avanti S 80mm EDF sport jet? · Modern device · basis: Manufacturer specifications (Freewing (manual hosted by Lindinger), Motion RC (Freewing distributor))

Also called: freewing avanti dimensions, avanti s 80mm wingspan, avanti s length, fj21211, avanti s cg, avanti s battery, avanti sport jet size, avanti s spannweite, avanti s envergadura

Exact dimensions. True size, with no printing tolerance added.

length
1300 mm
width
1236 mm

Notes

  • From the Freewing Avanti S manual (FJ21211), cross-checked with Motion RC for length and CG reference.
  • Plan-view envelope only (wingspan × length); height and wing area are not published.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.

Freewing Avanti S 80mm EDF sport jet size chart

dimensionvalue
Wingspan1236 mm (48.7 in)
Length1300 mm / 51.2 in
Weight without battery1920 g (manual)
Flying weight~2600 g / 91.7 oz (Motion RC)
Wing loading93.5 g/dm²
EDF80 mm 12-blade (manual); ARF Plus listing recommends 9-blade
Motor3530 1850 Kv outrunner (manual)
ESC100 A, UBEC 5 A
Servos9 g digital metal gear (8 positions)
Battery6S 22.2 V 4000–5200 mAh
CG105–110 mm (4-1/8–4-3/8 in) where wing leading edge meets fuselage
Heightnot published

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Freewing (manual hosted by Lindinger)Avanti S 80mm manual ENwebPublisher's page; dimensions are facts
Motion RC (Freewing distributor)Freewing Avanti S 80mm ARF PLUSwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

freewing-avanti-s-80mm-edf-plan-outlinePlan outline 1300 × 1236 mm, 1 mm reference thickness (height not published)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=freewing-avanti-s-80mm-edf

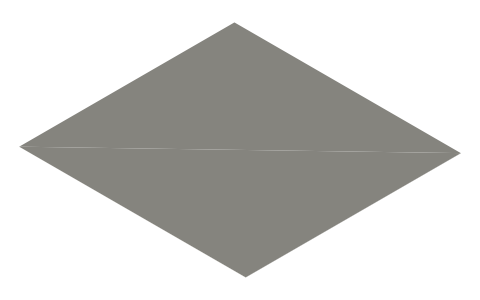

Freewing Avanti S 80mm EDF sport jet, isometric render of a generated part
Render of freewing-avanti-s-80mm-edf-plan-outline from the free STEP; not to scale.

Fits with

RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors, isometric render of a generated part
RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors12 sizes★ 4 files

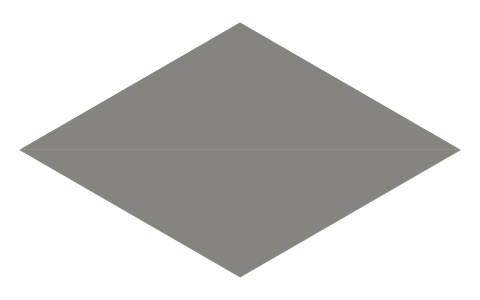

Freewing F-86 Sabre 80mm EDF jet, isometric render of a generated part
Freewing F-86 Sabre 80mm EDF jet1200×1200 mm★ 1 file

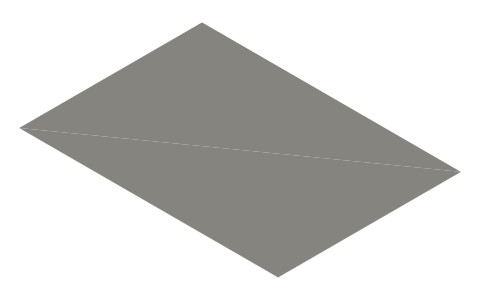

Freewing F-22 Raptor 90mm EDF jet, isometric render of a generated part
Freewing F-22 Raptor 90mm EDF jet1500×1060 mm★ 1 file

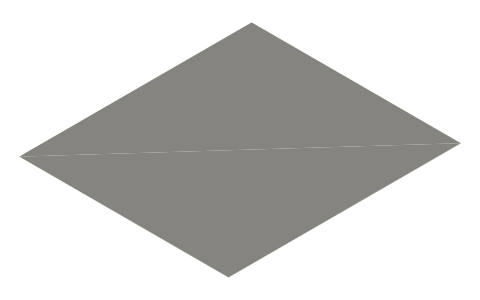

Freewing A-10 Thunderbolt II V3 twin 64mm EDF, isometric render of a generated part
Freewing A-10 Thunderbolt II V3 twin 64mm EDF1143×1270 mm★ 1 file

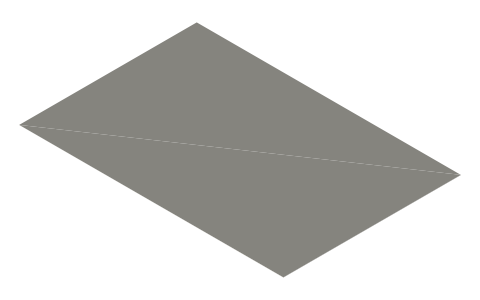

Freewing F-16 Falcon V3 70mm EDF jet, isometric render of a generated part
Freewing F-16 Falcon V3 70mm EDF jet1306×878 mm★ 1 file

Questions

Where is the Avanti S CG?

105–110 mm from where the wing leading edge meets the fuselage.
