French cleat dimensions: 45° on 3/4 in stock from a 5 in blank

What size should a French cleat be? · Standard part · basis: Popular Woodworking's French cleat method (3/4 in plywood, 5 in blank ripped at 45°)

Also called: french cleat size, french cleat dimensions, french cleat 3d print

Exact dimensions. True size, with no printing tolerance added.

sizes
4 in table

Notes

  • Rip a 5 in (127 mm) blank of 3/4 in (19.05 mm) plywood at 45° down the middle: two halves, each 63.5 mm wide on the long face.
  • Wall half: bevel up and facing the wall, screwed into studs; cabinet half: bevel down. Printed cleats (PETG, 6 walls) suit light tool holders on a plywood wall cleat.

French cleat dimensions: 45° on 3/4 in stock from a 5 in blank size chart

itemmminch
stock thickness19.053/4
blank width127.05
half width (long face)63.52-1/2
bevel45°45°

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Popular WoodworkingFrench cleat techniquewebPublisher's page; dimensions are facts

Free files

★ Free files 3 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

french-cleat-3-4in-150French cleat half, 3/4 in (19.05) stock, 45° edge, 63.5 mm wide, 150 mm longSTEP · STL
french-cleat-3-4in-300French cleat half, 3/4 in (19.05) stock, 45° edge, 63.5 mm wide, 300 mm longSTEP · STL
french-cleat-3-4in-600French cleat half, 3/4 in (19.05) stock, 45° edge, 63.5 mm wide, 600 mm longSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=french-cleat

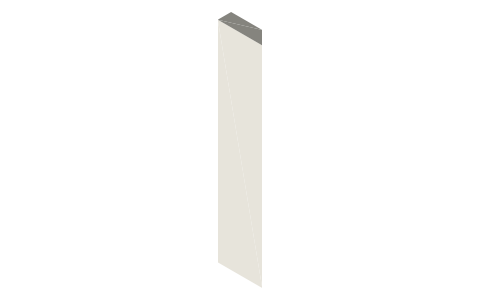

French cleat dimensions: 45° on 3/4 in stock from a 5 in blank, isometric render of a generated part
Render of french-cleat-3-4in-300 from the free STEP; not to scale.

Fits with

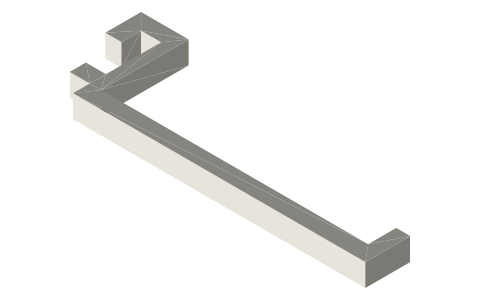

Pegboard hole size and spacing: 1/4 in holes on 1 in centers (and 3/16 in), panel sizes, hook wire, isometric render of a generated part
Pegboard hole size and spacing: 1/4 in holes on 1 in centers (and 3/16 in), panel sizes, hook wire7 sizes★ 5 files
length
Garage wall rail systems: published sizes (GearTrack, FastTrack, Husky, VersaTrack, Ryobi LINK, Packout plate)6 sizes★ sheet
Dimensional lumber: actual sizes of 1x2 to 6x6, 8 to 16 ft (2x4 = 1-1/2 × 3-1/2 in), isometric render of a generated part
Dimensional lumber: actual sizes of 1x2 to 6x6, 8 to 16 ft (2x4 = 1-1/2 × 3-1/2 in)17 sizes★ 72 files

Questions

What angle is a French cleat?

45°, ripped from 3/4 in stock.
