GEPRC CineLog35 V2 frame parts list
What parts does the GEPRC CineLog35 V2 frame use, and what sizes are they? · Modern device · basis: Maker's manual / official spare-parts listing: part numbers and sizes as printed
Also called: GEPRC CineLog35 V2 frame part numbers, GEPRC CineLog35 V2 frame replacement parts, GEPRC CineLog35 V2 frame spare parts, GEPRC CineLog35 V2 frame parts diagram, GEPRC CineLog35 V2 frame exploded view, GEPRC CineLog35 V2 frame bearings, GEPRC CineLog35 V2 frame screw sizes, repuestos GEPRC CineLog35 V2 frame, GEPRC CineLog35 V2 frame Ersatzteile
Exact dimensions. True size, with no printing tolerance added.
- length
- 25.5 mm
- width
- 25.5 mm
Notes
- Every part number the maker publishes for the GEPRC CineLog35 V2 frame — 20 parts, 16 with sizes printed in the source (bearings, screws, pins, props, servos, motors, batteries…). Sizes are copied exactly as printed; "not published" means the source gives none.
- The file is the vehicle's own true-size envelope (the same as its main page). Molded parts' shapes are not published, so they are not modelled; standard hardware links to its own pages.
- Use it to rebuild or re-print the vehicle: order the numbered parts, print the rest to the published sizes.
GEPRC CineLog35 V2 frame parts list size chart
| part number | part | group | sizes (as printed) | qty | also fits |
|---|---|---|---|---|---|
| GEP-CL35 V2 | CineLog35 V2 frame | frame/arms | 142 mm wheelbase; 133.7 g; FC mount 25.5 × 25.5 mm; motor mount 12 × 12 mm; camera space 20 mm; 3.5 in props | 1 | — |
| not published | CineLog35 V2 arm plate | frame/arms | 3.5 mm (frame kit lists 'Arm Plate 3.5mm'; complete-drone listing calls the 3.5 mm part 'Top plate') | 1 | — |
| not published | CineLog35 V2 top plate | frame/arms | 2 mm (frame kit listing) | 1 | — |
| not published | CineLog35 V2 bottom plate | frame/arms | 1.5 mm | 1 | — |
| SPEEDX2 2105.5-2150KV | GEPRC SPEEDX2 2105.5 2150KV motor (6S) | propulsion | 2105.5 stator; mounts on 12 × 12 mm pattern (frame); shaft not published | 4 | — |
| HQProp D-T90MM | HQProp D-T90MM propeller (pair) | props | 90 mm; T-mount; hub not published | 2 × 2 pairs in box | — |
| GEP-F722-45A AIO V2 | GEPRC F722 45A AIO flight controller/ESC | electronics | STM32F722RET6; ICM42688-P; 8-bit 45 A ESC; 25.5 × 25.5 mm mount (frame); AT7456E OSD | 1 | — |
| RAD 1W | GEPRC RAD 1W VTX (UFL) | electronics | U.FL; board size not published | 1 | — |
| XT60E1-M | XT60E1-M power cable (plate-mounted) | electronics | XT60 | 1 | — |
| not published | GEPRC Peano 5.8G RHCP antenna (UFL) | electronics | U.FL; length not published | 1 | — |
| not published | Receiver: GEPRC ELRS 2.4G or TBS Nano RX (PNP without) | electronics | not published | 0–1 | — |
| Caddx Ratel 2 | Caddx Ratel 2 camera | camera/gimbal | 19 × 19 × 20 mm; 5.9 g (see caddx-ratel-2) | 1 | — |
| not published | CineLog35 V2 gimbal plate | camera/gimbal | 2.0 mm | 1 | — |
| not published | GoPro mounting base / naked GoPro mounting base | camera/gimbal | not published | 1 each | — |
| not published | Battery strap | hardware | M20 × 250 mm | 2 | — |
| not published | Battery silicone pad | hardware | not published | 2 | — |
| not published | Antenna mounting base and antenna fixed tube (pair) | hardware | not published | 1 each | — |
| not published | Hardware set | hardware | screw sizes not published | 1 | — |
| not published | L-shaped screwdrivers | hardware | 1.5 mm, 2 mm, 3 mm | 3 | — |
| not published | M5 wrench | hardware | M5 | 1 | — |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| GetFPV | GEPRC CL35 Cinelog 35 V2 Frame Kit | web | Publisher's page; dimensions are facts |
| GetFPV | GEPRC CineLog 35 V2 Analog w/ Caddx Ratel 2 - 6S | web | Publisher's page; dimensions are facts |
Free files
★ Free files 3 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
| geprc-cinelog35-v2-frame-fc-hole-pattern | FC holes on a 25.5 × 25.5 mm square (M2) — template disc | STEP · STL |

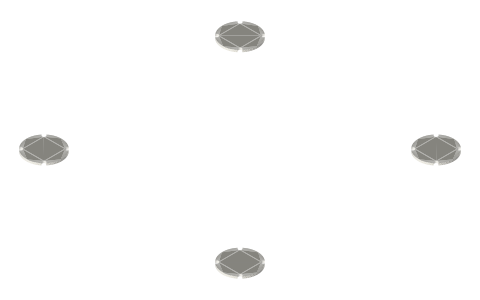

| geprc-cinelog35-v2-frame-motor-hole-patterns | Motor mounts: 12 × 12 mm squares (M2) at the corners of a 142 mm diagonal — template discs | STEP · STL |
| geprc-hqprop-d-t90mm-hqprop-d-t90mm-propeller-pair-swept-disc | Swept disc Ø90 mm, 1 mm reference — blades and hub not published | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=geprc-cinelog35-v2-frame-parts-list
Fits with
Questions
Where do the GEPRC CineLog35 V2 frame part numbers come from?
The maker's manual or official spare-parts listing; every row cites its source.
How many parts are listed for the GEPRC CineLog35 V2 frame?
20, of which 16 have sizes printed by the maker.
