Glass syringes 1–50 mL (all-glass, ground-glass plunger): barrel and plunger

sizes

8 in table

Notes

• Published per size (KDS / Tomopal datasheet), and drawn exactly: plunger (piston) OD, which is the barrel bore of a ground-glass syringe; barrel OD (D1); barrel collar Ø (D2); piston collar Ø (D3); length L. 1 mL Ø4.80 bore / Ø8.30 OD / L 115.00; 2 mL 6.45 / 9.95 / 115.00; 5 mL 12.60 / 15.40 / 105.00; 10 mL 15.15 / 18.35 / 128.50; 20 mL 20.40 / 24.20 / 145.50; 30 mL 22.90 / 27.30 / 163.00; 50 mL 27.45 / 32.35 / 178.00. Every one of these five numbers is verified for every size drawn.
• Drawn but not published (my geometry, so the parts are whole): the datasheet does not name L's end points, so L is drawn from the Luer tip end to the top of the barrel collar (the plunger is not in it: 1 and 2 mL share L = 115 while their strokes differ); the tip is a male Luer cone per ISO 594-1 (Ø3.925 at the end, 6 % taper, 7.5 long, Ø1.2 bore at the standard's minimum); the closed end wall is as thick as the barrel wall; both collars are 3 mm thick and round (the real barrel collar has two flats, width not published); the plunger rod is as long as the bore, so the collars meet when the plunger bottoms. The metal Luer-lock collar is not drawn (its outside is not defined by ISO 594-2 and not given in the datasheet).
• 3 mL is left out: the series has no 3 mL and I found no other datasheet that gives a 3 mL glass barrel's OD, length and collar. Brands differ: the syringe-pump tables give the Popper (Micro-Mate) glass bores as 1 mL 4.50, 2 mL 8.92, 3 mL 8.99, 5 mL 11.7, 10 mL 14.7, 20 mL 19.6, 30 mL 22.7, 50 mL 29.0 mm (the bores most DIY builds quote); those are listed in the table for reference but not drawn, because no Popper OD, length or collar size is published.
• In the existing frames: the plastic-syringe sockets are Ø15.9 (alpha V-twin frame, V block, Ross frame, LTD top plate, tri-clamp syringe head, syringe-cradle-10ml). A glass 5 mL barrel (Ø15.40) goes in with 0.50 mm diametral play (it does not grip: the socket is 0.25 mm per side oversize); a glass 10 mL (Ø18.35) does not go in. syringe-cradle-20ml (Ø21.0) fits no glass size; syringe-cradle-60ml (Ø29.0) takes a glass 30 mL (Ø27.30) with 1.70 play, not a 50 mL (Ø32.35). The syringe-pistons (Ø14.5 / 19.1 / 21.7) are plastic-barrel bores and fit no glass barrel: a glass syringe runs on its own plunger.

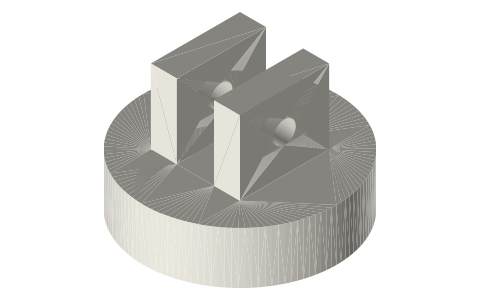

• Stroke volume per mm = bore² × π / 4: 5 mL 0.125 mL/mm, 10 mL 0.180 mL/mm. The 5 mL is the power piston of the mug LTD and the test-tube marble engine; glass-syringe-plunger-clevis takes the con-rod.

Sizes

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance; leave designed gaps and clamp fits as drawn.

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

KD Scientific	Full Line of Glass Syringes, rev. A (order codes 78-0871 to 78-0880): piston OD, barrel OD D1, barrel collar D2, piston collar D3, length L	PDF	manufacturer datasheet verify
Tomopal	2 mL glass syringe with metal Luer lock, part 140-4002 (piston OD 6.45, D1 9.95, D2 16.40, D3 12.25, L 115.00)	PDF	manufacturer datasheet verify
Tomopal	50 mL glass syringe, part 140-4550 (piston OD 27.45, D1 32.35, D2 44.00, D3 34.05, L 178.00)	PDF	manufacturer datasheet verify
BD	Disposable syringes technical data sheet: Luer tip Ø3.925–4.027 at the end, 6 % taper, 7.5 mm long minimum (ISO 594-1/-2), tip bore Ø1.2 minimum (ISO 7886-1)	PDF	manufacturer datasheet verify
Vanderbilt University (syringe-pump table)	Syringe Diameters: Glass (Popper) 1 mL 4.50, 2 mL 8.92, 3 mL 8.99, 5 mL 11.7, 10 mL 14.7, 20 mL 19.6, 30 mL 22.7, 50 mL 29.0 mm	PDF	reference table verify
Wikipedia	Syringe	web	CC BY-SA 4.0 (text)
Long Earth Society	Engine builds	web, video	LES site

Free files

★ Free files 14 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Plain text: sheet.txt · JSON: /api/geometry?object=glass-syringes
