Hammer head 24 × 24 × 40 with a 12 × 8 helve socket

Name: Hammer head 24 × 24 × 40 with a 12 × 8 helve socket dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What is this hammer head? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: hammer head, tilt hammer head, cabeza del martinete, Hammerkopf

Exact dimensions. True size, with no printing tolerance added.

length: 24.0 mm
width: 24.0 mm
height: 40.0 mm

Notes

24 × 24 × 40 block with a 12 × 8 mm through socket near its top for the helve (line-on-line), the face 32 mm below the helve's underside.
Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Hammer head 24 × 24 × 40 with a 12 × 8 helve socket size chart

dimension	value
head	24 × 24 × 40 mm
socket	12 × 8 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)	Five Hundred and Seven Mechanical Movements — scan on archive.org	web	Publisher's page; dimensions are facts
507movements.com	Brown's movement No. 353: figure, his text and an animation	web	Publisher's page; dimensions are facts
Xem Studio	drawing	web	Publisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

hammer-head-24x24x40

head, socket z 0..8, face at z −32

STEP · STL

Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.

Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=hammer-head-24x24x40

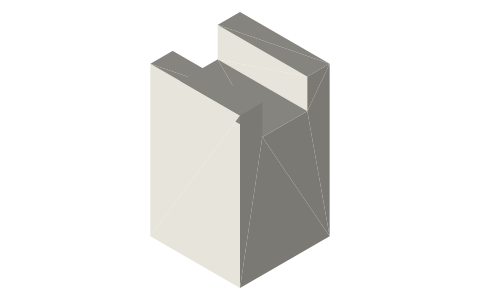

Hammer head 24 × 24 × 40 with a 12 × 8 helve socket, isometric render of a generated part — Render of hammer-head-24x24x40 from the free STEP; not to scale.
