HobbyZone Sport Cub S 2 (615 mm) parts list
What parts does the HobbyZone Sport Cub S 2 (615 mm) use, and what sizes are they? · Modern device · basis: Maker's manual / official spare-parts listing: part numbers and sizes as printed
Also called: HobbyZone Sport Cub S 2 (615 mm) part numbers, HobbyZone Sport Cub S 2 (615 mm) replacement parts, HobbyZone Sport Cub S 2 (615 mm) spare parts, HobbyZone Sport Cub S 2 (615 mm) parts diagram, HobbyZone Sport Cub S 2 (615 mm) exploded view, HobbyZone Sport Cub S 2 (615 mm) bearings, HobbyZone Sport Cub S 2 (615 mm) screw sizes, repuestos HobbyZone Sport Cub S 2 (615 mm), HobbyZone Sport Cub S 2 (6
Exact dimensions. True size, with no printing tolerance added.
- length
- 414.5 mm
- width
- 617 mm
Notes
- Every part number the maker publishes for the HobbyZone Sport Cub S 2 (615 mm) — 16 parts, 4 with sizes printed in the source (bearings, screws, pins, props, servos, motors, batteries…). Sizes are copied exactly as printed; "not published" means the source gives none.
- The file is the vehicle's own true-size envelope (the same as its main page). Molded parts' shapes are not published, so they are not modelled; standard hardware links to its own pages.
- Use it to rebuild or re-print the vehicle: order the numbered parts, print the rest to the published sizes.
HobbyZone Sport Cub S 2 (615 mm) parts list size chart
| part number | part | group | sizes (as printed) | qty | also fits |
|---|---|---|---|---|---|
| HBZ4413 | Decal Sheet: Sport Cub | airframe | not published | not published | — |
| HBZ44520 | Fuse w/electronics: Sport Cub | airframe | not published | not published | — |
| HBZ4467 | Bare Fuselage: Sport Cub | airframe | not published | not published | — |
| HBZ4420 | Wing: Sport Cub | wing | not published | not published | — |
| HBZ4431 | Tail Set: Sport Cub | tail | not published | not published | — |
| EFLUA1190 | Float Set: UMX Carbon Cub SS | landing gear | not published | not published | — |
| HBZ4406 | Landing Gear Set: Sport Cub | landing gear | not published | not published | — |
| EFLB1501S25 | 150mAh 1S 3.7V 25C Li-Po battery | power system | 1S 150mAh 25C | not published | rc-lipo-batteries |
| EFLB1501S45 | 150mAh 1S 3.7V 45C LiPo Battery | power system | 1S 150mAh 45C | not published | rc-lipo-batteries |
| HBZ4401 | Prop and Spinner: Sport Cub | power system | 130 x 70 (prop size from the manual's Motor Service section) | not published | — |
| HBZ4404 | Prop Shaft: Sport Cub | power system | not published | not published | — |
| HBZ4429 | Motor: Sport Cub | power system | not published | not published | — |
| HBZ4430 | Complete Gear Box: Sport Cub | power system | not published | not published | — |
| HBZ4421 | Pushrod/Control Horns: Sport Cub | servos/linkages | not published | not published | — |
| SPMSA200 | 2.3-Gram Linear Long Throw Offset Servo | servos/linkages | 2.3 g | not published | — |
| SPMA3179 | Sport Cub S 2 615mm Receiver/ESC | electronics | not published | not published | — |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Horizon Hobby / HobbyZone (manual hosted by Astra) | Sport Cub S 2 615mm manual (EN), Replacement Parts, p. 20 | web | Publisher's page; dimensions are facts |
Free files

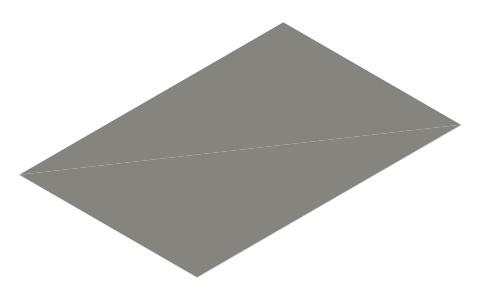

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
| hobbyzone-sport-cub-s-2-plan-outline | Plan outline 414.5 × 617 mm, 1 mm reference thickness (height not published) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=hobbyzone-sport-cub-s-2-parts-list
Fits with
Questions
Where do the HobbyZone Sport Cub S 2 (615 mm) part numbers come from?
The maker's manual or official spare-parts listing; every row cites its source.
How many parts are listed for the HobbyZone Sport Cub S 2 (615 mm)?
16, of which 4 have sizes printed by the maker.
