Pololu D24V10F5 5V 1A step-down regulator

What are the dimensions of the Pololu D24V10F5 5V 1A step-down regulator? · Modern device · basis: Pololu (dimension drawing)

Also called: pololu d24v10f5 5v 1a step-down regulator dimensions, pololu d24v10f5 5v 1a step-down regulator size, pololu d24v10f5 5v 1a step-down regulator mounting holes, pololu d24v10f5 5v 1a step-down regulator medidas, pololu d24v10f5 5v 1a step-down regulator Maße

Exact dimensions. True size, with no printing tolerance added.

length
12.7 mm
width
17.8 mm
height
3.56 mm

Notes

  • Pololu D24V10F5 5V 1A step-down regulator: 12.7 × 17.8 × 3.56 mm, 1 g. 0.5 × 0.7 × 0.14 in; no mounting holes.
  • Mounting holes: 5 × Ø1.02 mm pin holes on 2.54 mm pitch, 1.27 mm from the edge.
  • The file is the outline; components and connectors are not modelled.

Pololu D24V10F5 5V 1A step-down regulator size chart

dimensionvalue
size12.7 × 17.8 × 3.56 mm
mounting holes5 × Ø1.02 mm pin holes on 2.54 mm pitch, 1.27 mm from the edge
weight1 g

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

PololuPololu D24V10F5 5V 1A step-down regulatorwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

pololu-d24v10f5-5v-1a-step-down-regulator-outline12.7 × 17.8 × 3.56 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=pololu-d24v10f5-5v-1a-step-down-regulator

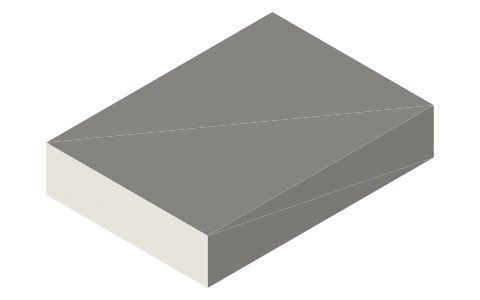

Pololu D24V10F5 5V 1A step-down regulator, isometric render of a generated part
