Pololu S9V11F5 5V step-up/step-down regulator

What are the dimensions of the Pololu S9V11F5 5V step-up/step-down regulator? · Modern device · basis: Pololu

Also called: pololu s9v11f5 5v step-up/step-down regulator dimensions, pololu s9v11f5 5v step-up/step-down regulator size, pololu s9v11f5 5v step-up/step-down regulator mounting holes, pololu s9v11f5 5v step-up/step-down regulator medidas, pololu s9v11f5 5v step-up/step-down regulator Maße

Exact dimensions. True size, with no printing tolerance added.

length
7.62 mm
width
11.43 mm
height
3.81 mm

Notes

  • Pololu S9V11F5 5V step-up/step-down regulator: 7.62 × 11.43 × 3.81 mm, 0.5 g. 0.3 × 0.45 in; Pololu gives 0.15 in (3.81 mm) and 0.17 in (4.32 mm) heights in different tables, both without headers.
  • No mounting-hole positions are published.
  • The file is the outline; components and connectors are not modelled.

Pololu S9V11F5 5V step-up/step-down regulator size chart

dimensionvalue
size7.62 × 11.43 × 3.81 mm
weight0.5 g

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

PololuPololu S9V11F5 5V step-up/step-down regulatorwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

pololu-s9v11f5-5v-step-up-step-down-regulator-outline7.62 × 11.43 × 3.81 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=pololu-s9v11f5-5v-step-up-step-down-regulator

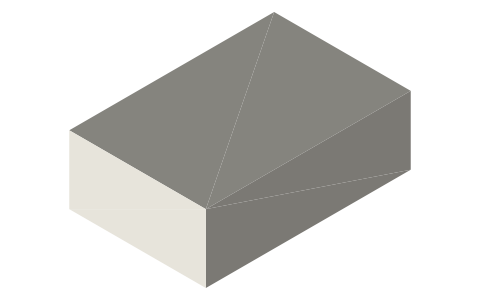

Pololu S9V11F5 5V step-up/step-down regulator, isometric render of a generated part
