Pro-Line Class 1 Hyrax 1.9 in G8 rock terrain tire (PRO1014214)

What are the dimensions of the Pro-Line Class 1 Hyrax 1.9 in G8 rock terrain tire? · Modern device · basis: Manufacturer specifications (Pro-Line Racing)

Also called: pro-line hyrax class 1 size, hyrax 1.9 4.19 od, class 1 crawler tire size, pro-line 1014214, 1.9 crawler tire diameter, medidas hyrax class 1, pro-line hyrax maße, pro-line class 1 hyrax 1.9 in g8 rock terrain tire specs

Exact dimensions. True size, with no printing tolerance added.

length
106.43 mm
width
106.43 mm
height
35.56 mm

Notes

  • This is Pro-Line's Class 1 legal 4.19 in Hyrax for 1.9 in crawler wheels. The file is a Ø106.43 × 35.56 mm cylinder.
  • Tread is not modelled.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.

Pro-Line Class 1 Hyrax 1.9 in G8 rock terrain tire size chart

dimensionvalue
Outside diameter4.19 in (106.43 mm)
Width1.4 in (35.56 mm)
Wheel1.9 in
CompoundG8
Insertsopen-cell foam (2)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Pro-Line RacingClass 1 Hyrax 1.9 4.19 OD G8 Rock Terrain Truck TireswebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

pro-line-class-1-hyrax-1-9-g8-envelopeEnvelope Ø106.43 × 35.56 mm (Tire OD × width as published (4.19 × 1.4 in))STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=pro-line-class-1-hyrax-1-9-g8

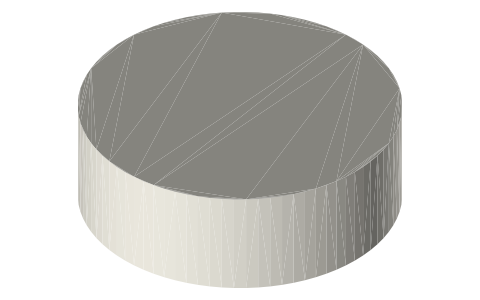

Pro-Line Class 1 Hyrax 1.9 in G8 rock terrain tire (PRO1014214), isometric render of a generated part
Render of pro-line-class-1-hyrax-1-9-g8-envelope from the free STEP; not to scale.

Fits with

Traxxas TRX-4 1.9 in tire 118 × 48 mm (Canyon Trail), isometric render of a generated part
Traxxas TRX-4 1.9 in tire 118 × 48 mm (Canyon Trail)118×118×48 mm★ 1 file
Traxxas TRX-4M tire 61.9 × 25.6 mm (1.0 in wheel), isometric render of a generated part
Traxxas TRX-4M tire 61.9 × 25.6 mm (1.0 in wheel)61.9×61.9×25.6 mm★ 1 file
Tamiya CC-02 tire 90 × 33 mm, isometric render of a generated part
Tamiya CC-02 tire 90 × 33 mm90×90×33 mm★ 1 file
Tamiya TT-02 touring tire 66 × 26 mm, isometric render of a generated part
Tamiya TT-02 touring tire 66 × 26 mm66×66×26 mm★ 1 file

Questions

How big is the Class 1 Hyrax 1.9?

4.19 in (106.43 mm) OD × 1.4 in (35.56 mm) wide.
