Pro-Line Hyrax 1.9 in rock terrain truck tire (10128)

What are the dimensions of the Pro-Line Hyrax 1.9 in rock terrain truck tire? · Modern device · basis: Manufacturer specifications (Pro-Line Racing)

Also called: pro-line hyrax 1.9 size, hyrax 1.9 diameter, hyrax 4.73, pro-line 10128, 1.9 crawler tire 120mm, medidas hyrax 1.9, pro-line hyrax 1.9 maße, pro-line hyrax 1.9 in rock terrain truck tire specs

Exact dimensions. True size, with no printing tolerance added.

length
120 mm
width
120 mm
height
45 mm

Notes

  • This is the full-size Hyrax 1.9 crawler tire. Pro-Line prints a product height of 120 mm rather than labelling an OD; the file is a Ø120 × 45 mm cylinder.
  • The 120 mm figure is treated as the standing tire height; Pro-Line does not label it OD.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.

Pro-Line Hyrax 1.9 in rock terrain truck tire size chart

dimensionvalue
Product height (as printed)4.73 in (120 mm)
Width1.76 in (45 mm)
CompoundsG8 (10128-14), Predator (10128-03)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Pro-Line RacingHyrax 1.9 Rock Terrain Truck TireswebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

pro-line-hyrax-1-9-10128-envelopeEnvelope Ø120 × 45 mm (Product height (tire standing) × width as published)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=pro-line-hyrax-1-9-10128

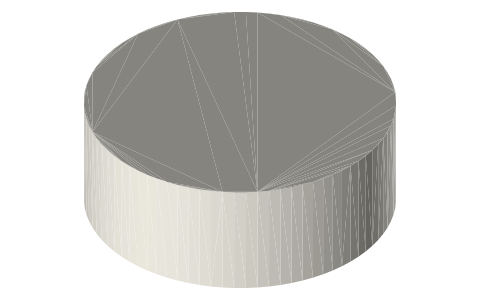

Pro-Line Hyrax 1.9 in rock terrain truck tire (10128), isometric render of a generated part
Render of pro-line-hyrax-1-9-10128-envelope from the free STEP; not to scale.

Fits with

Traxxas TRX-4 1.9 in tire 118 × 48 mm (Canyon Trail), isometric render of a generated part
Traxxas TRX-4 1.9 in tire 118 × 48 mm (Canyon Trail)118×118×48 mm★ 1 file
Traxxas TRX-4M tire 61.9 × 25.6 mm (1.0 in wheel), isometric render of a generated part
Traxxas TRX-4M tire 61.9 × 25.6 mm (1.0 in wheel)61.9×61.9×25.6 mm★ 1 file
Tamiya CC-02 tire 90 × 33 mm, isometric render of a generated part
Tamiya CC-02 tire 90 × 33 mm90×90×33 mm★ 1 file
Tamiya TT-02 touring tire 66 × 26 mm, isometric render of a generated part
Tamiya TT-02 touring tire 66 × 26 mm66×66×26 mm★ 1 file

Questions

How big is the Pro-Line Hyrax 1.9?

4.73 in (120 mm) tall and 1.76 in (45 mm) wide as printed.
