Raspberry Pi Camera Module 2

What are the dimensions of the Raspberry Pi Camera Module 2? · Modern device · basis: Raspberry Pi documentation

Also called: raspberry pi camera module 2 dimensions, raspberry pi camera module 2 size, raspberry pi camera module 2 mounting holes, raspberry pi camera module 2 medidas, raspberry pi camera module 2 Maße

Exact dimensions. True size, with no printing tolerance added.

length
25 mm
width
24 mm
height
9 mm

Notes

  • Raspberry Pi Camera Module 2: 25 × 24 × 9 mm, 3 g. Raspberry Pi gives 'around 25 × 24 × 9 mm'; 15-pin FFC connector.
  • Mounting holes: same board size and hole positions as Camera Module 3.
  • The file is the outline; components and connectors are not modelled.

Raspberry Pi Camera Module 2 size chart

dimensionvalue
size25 × 24 × 9 mm
mounting holessame board size and hole positions as Camera Module 3
weight3 g

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Raspberry Pi documentationRaspberry Pi Camera Module 2webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

raspberry-pi-camera-module-2-outline25 × 24 × 9 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=raspberry-pi-camera-module-2

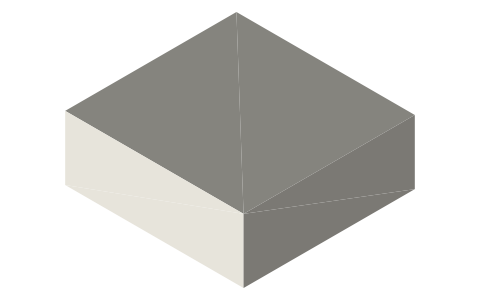

Raspberry Pi Camera Module 2, isometric render of a generated part
Render of raspberry-pi-camera-module-2-outline from the free STEP; not to scale.

Fits with

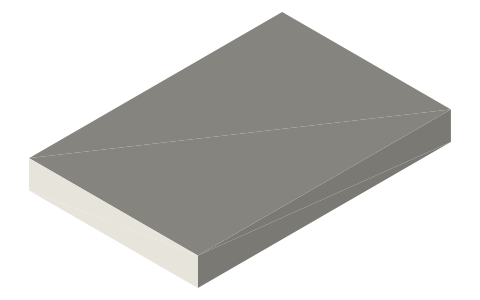

Ai-Thinker ESP32-CAM, isometric render of a generated part
Ai-Thinker ESP32-CAM27×40.5×4.5 mm★ 1 file

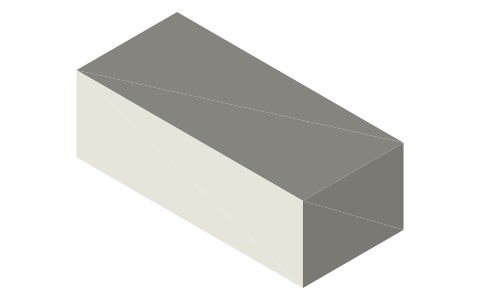

HC-SR04 ultrasonic sensor, isometric render of a generated part
HC-SR04 ultrasonic sensor45×20×15 mm★ 1 file

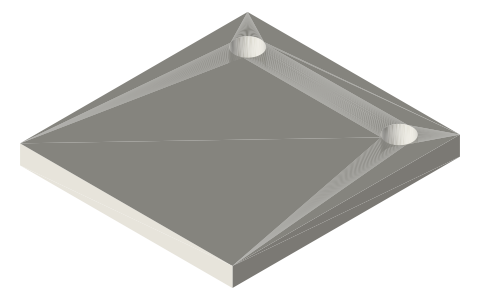

Adafruit BME280 breakout (original), isometric render of a generated part
Adafruit BME280 breakout (original)17.78×19.05 mm★ 1 file

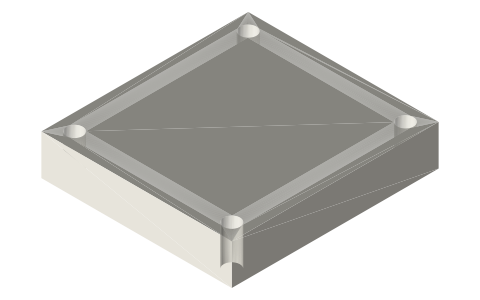

Adafruit 0.96 in 128x64 OLED (STEMMA QT), isometric render of a generated part
Adafruit 0.96 in 128x64 OLED (STEMMA QT)29.21×31.75×6.2 mm★ 1 file

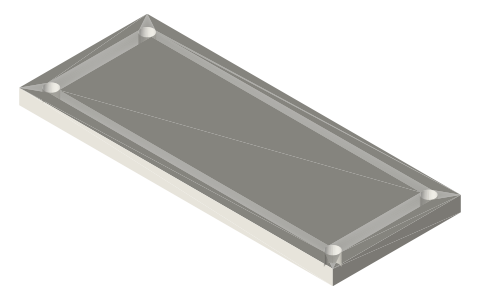

Adafruit PCA9685 16-channel PWM servo driver, isometric render of a generated part
