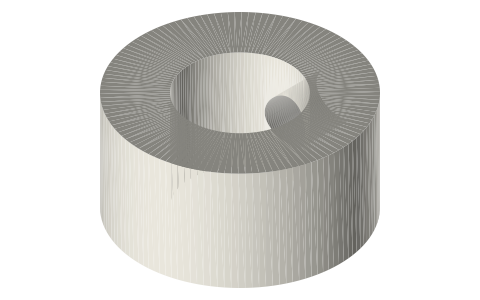

Xem Studiomeasured geometrySet-screw shaft collars Ø3 to Ø12
What are the dimensions of a shaft collar for a 5 mm or 8 mm shaft? · Hardware · basis: Metric set-screw collar envelopes; bore = shaft Ø, radial tapped hole at the ISO tap drill
Long Earth Society build part. Flywheel and crank shafts with their clips and collars. The engines
Exact dimensions. Every file is drawn at true size with no printing tolerance. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your printer's or process's clearance before making the part. Mating features
- sizes
- 7 in table
Notes
- A ring with one radial tapped hole at mid-width: bore Ø × OD × width and screw: 3 × 8 × 5 M3; 4 × 9 × 5 M3; 5 × 10 × 6 M3; 6 × 12 × 7 M3; 8 × 16 × 8 M4; 10 × 20 × 10 M4; 12 × 22 × 10 M5.
- The bore is the shaft Ø exactly; the screw hole is drawn at the tap drill: Ø2.5 (M3), Ø3.3 (M4), Ø4.2 (M5).
- A collar each side of a bearing locates a shaft along its axis; the set screw seats on the shaft's D-flat.
Sizes
| file | bore | OD | width | screw | tap drill |
|---|---|---|---|---|---|
| collar-3mm | 3 | 8 | 5 | M3 | 2.5 |
| collar-4mm | 4 | 9 | 5 | M3 | 2.5 |
| collar-5mm | 5 | 10 | 6 | M3 | 2.5 |
| collar-6mm | 6 | 12 | 7 | M3 | 2.5 |
| collar-8mm | 8 | 16 | 8 | M4 | 3.3 |
| collar-10mm | 10 | 20 | 10 | M4 | 3.3 |
| collar-12mm | 12 | 22 | 10 | M5 | 4.2 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance; leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| collar bore | Ø3–Ø12 (= shaft Ø) | shaft of the same Ø | slide | collar-* |
| collar set-screw hole | Ø2.5 / Ø3.3 / Ø4.2 | M3 / M4 / M5 tap drill | designed | collar-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Wikipedia | Circlip | web | CC BY-SA 4.0 (text) |
| Wikipedia | Retaining ring | web | CC BY-SA 4.0 (text) |
| McMaster-Carr | Shaft collars (free STEP per part, for your own design use; no redistribution) | STEP, PDF | McMaster-Carr site terms verify |
| McMaster-Carr | Retaining rings (free STEP per part, for your own design use; no redistribution) | STEP, PDF | McMaster-Carr site terms verify |
| Long Earth Society | Engine and rig builds | web, video | LES site |
Free files
★ Free files 7 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
| collar-3mm | set-screw shaft collar Ø3 bore, OD 8, 5 wide, M3 | STEP · STL |
| collar-4mm | set-screw shaft collar Ø4 bore, OD 9, 5 wide, M3 | STEP · STL |
| collar-5mm | set-screw shaft collar Ø5 bore, OD 10, 6 wide, M3 | STEP · STL |
| collar-6mm | set-screw shaft collar Ø6 bore, OD 12, 7 wide, M3 | STEP · STL |
| collar-8mm | set-screw shaft collar Ø8 bore, OD 16, 8 wide, M4 | STEP · STL |
| collar-10mm | set-screw shaft collar Ø10 bore, OD 20, 10 wide, M4 | STEP · STL |
| collar-12mm | set-screw shaft collar Ø12 bore, OD 22, 10 wide, M5 | STEP · STL |
Plain text: sheet.txt · JSON: /api/geometry?object=shaft-collars
How it fits
Goes in or on
Metric shafts Ø3 to Ø10 with D-flats and clip…bore = shaft Ø, screw on the D-flatConnects to

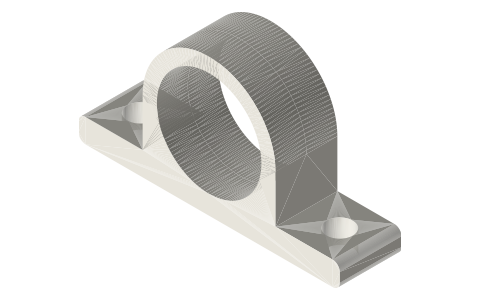

Pillow block KP08 envelope with a 608 pocketone each side of the 608Alternatives
E-clips DIN 6799 for Ø2 to Ø10 shaftsclip in a grooveAlso needed
Set screws, M3–M8M3 / M4 / M5 set screwIn these build lists
Gamma Stirling, 2 in tri-clampHot spool with a shell displacer, a crank head that carries the crankshaft, the …Beta Stirling, rhombic drive, 2 in tri-clampDisplacer and piston in one bore, driven by two counter-rotating gears on a rhom…Alpha V-twin, two 10 mL syringesTwo 10 mL syringe barrels in a 90° V on one crank pin: the V is the 90° phase.Ross yoke alpha, two parallel 10 mL syringesTwo 10 mL syringe barrels side by side on a Ross yoke: a = h gives 90° between t…Tri-clamp tee diaphragm gamma, 2 inA tea-light gamma in 2 in tri-clamp: displacer in a 3 in spool, a short-outlet t…Tri-clamp elbow diaphragm alpha, 2 inA torch-heated alpha in 2 in tri-clamp: a square of fittings with a diaphragm he…You might also need
Questions
What size shaft collar for an 8 mm shaft?
Ø8 bore, 16 OD, 8 wide, M4 set screw (Ø3.3 tap-drill hole).
What size shaft collar for a 5 mm shaft?
Ø5 bore, 10 OD, 6 wide, M3 set screw (Ø2.5 tap-drill hole).
