Single fixed pulley (power equals weight)

Does a single fixed pulley reduce the effort? · Hardware · basis: Xem Studio design following Brown No. 12 (1868)

Also called: fixed pulley, single pulley, simple pulley, rope pulley, polea fija simple, feste Rolle

Exact dimensions. True size, with no printing tolerance added.

sizes
3 in table

Notes

  • A rope over a fixed pulley only changes the direction of the pull: in equilibrium the power equals the weight (P = W), and the hand moves as far as the weight.
  • Here a pitch-Ø30 sheave in a block hung from the beam, a Ø40 × 40 weight (395 g in steel) on one end of a Ø3 rope, the other end free for the hand.
  • Brown's No. 12.
  • Parts (each has its own page): tackle-beam-240-sockets, tackle-block-15-top-stem, rope-sheave-3mm-pitch-30, ropes-3mm-single-fixed-pulley, tackle-weight-d40x40-socket, dowel-pins-metric.
  • Brown's movement No. 12 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Single fixed pulley size chart

parametervalue
sheavepitch Ø30 (Ø3 rope)
mechanical advantage1
hand travel / weight travel1

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 12: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

single-fixed-pulley-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=single-fixed-pulley-mechanism

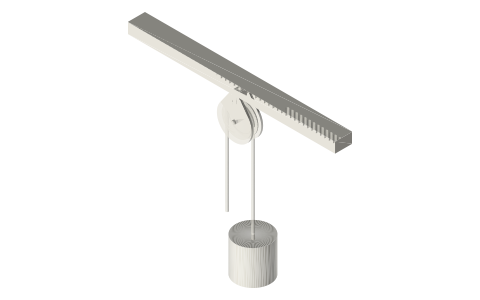

Single fixed pulley (power equals weight), isometric render of a generated part
Render of single-fixed-pulley-mechanism-assembly from the free STEP; not to scale.

Fits with

Tackle beam 240 × 20 × 12 with Ø3 sockets every 5 mm, isometric render of a generated part
Tackle beam 240 × 20 × 12 with Ø3 sockets every 5 mm240.0×20.0×12.0 mm★ 1 file

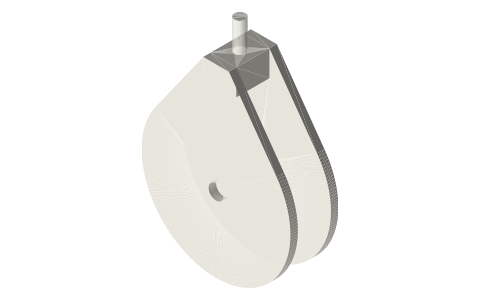

Single block for a pitch-Ø30 sheave, stem up (fixed block), isometric render of a generated part
Single block for a pitch-Ø30 sheave, stem up (fixed block)40.4×13.0×58.2 mm★ 1 file
Rope sheave for Ø3 rope, pitch Ø30 (rope centre), Ø34.4 rim, Ø4 bore, isometric render of a generated part
Rope sheave for Ø3 rope, pitch Ø30 (rope centre), Ø34.4 rim, Ø4 bore34.4×8.0×34.4 mm★ 1 file

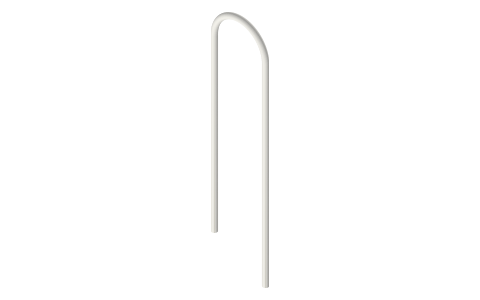

Ø3 rope for the single fixed pulley (drawn in place), isometric render of a generated part
Ø3 rope for the single fixed pulley (drawn in place)33.0×3.0×129.5 mm★ 1 file
Weight Ø40 × 40 with a Ø3 top socket (394.58 g in steel), isometric render of a generated part
Weight Ø40 × 40 with a Ø3 top socket (394.58 g in steel)40.0×40.0×40.0 mm★ 1 file
Dowel pins, 2–6 mm (ISO 2338 / DIN 6325), isometric render of a generated part
Dowel pins, 2–6 mm (ISO 2338 / DIN 6325)5 sizes★ 23 files

Questions

Does a single fixed pulley reduce the effort?

A rope over a fixed pulley only changes the direction of the pull: in equilibrium the power equals the weight (P = W), and the hand moves as far as the weight.

Why use a fixed pulley if it gives no advantage?

To pull down (with your weight) instead of lifting up, or to lead the rope where it is easier to work.
