Weight Ø40 × 40 with a Ø3 top socket (394.58 g in steel)

What weight hangs on the model tackles? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: weight, load, dead weight, pesa, Gewicht

Exact dimensions. True size, with no printing tolerance added.

length
40.0 mm
width
40.0 mm
height
40.0 mm

Notes

  • Ø40 × 40 mm cylinder with a Ø3 × 8 deep socket in the top centre for a block's stem or a rope end: 394.58 g in steel, 136.13 g in aluminium.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Weight Ø40 × 40 with a Ø3 top socket size chart

dimensionvalue
bodyØ40 × 40 mm
socketØ3 × 8 deep
mass (steel)394.58 g

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 12: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

tackle-weight-d40x40-socketweight, axis Z, z 0..40, socket on topSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tackle-weight-d40x40-socket

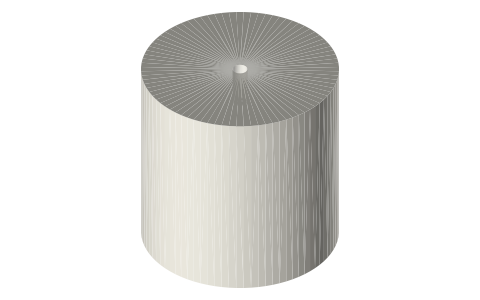

Weight Ø40 × 40 with a Ø3 top socket (394.58 g in steel), isometric render of a generated part
