T-Motor AT2312 long-shaft fixed-wing motor

What are the dimensions of the T-Motor AT2312 long-shaft fixed-wing motor? · Modern device · basis: Manufacturer specifications (T-Motor / LIGPOWER)

Also called: t-motor at2312 dimensions, at2312 long shaft, at2312 1150kv, at2312 1400kv, at2312 weight, tmotor at2312 shaft, at2312 medidas, at2312 abmessungen

Exact dimensions. True size, with no printing tolerance added.

length
28.4 mm
width
28.4 mm
height
44.5 mm

Notes

  • Size is T-Motor's single 'Φ × length' figure. The X-mount hole pattern is only in a drawing image on the page, so it is not given or modelled here.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.

T-Motor AT2312 long-shaft fixed-wing motor size chart

dimensionvalue
DimensionsΦ28.4 × 44.5 mm
Shaft4 mm in / 4 mm out
Weight incl. cable60 g
Kv options1150, 1400
Configuration12N14P
Lead22 AWG 100 mm (table); 20 AWG in description
Mount patterndrawing only, not in text

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

T-Motor / LIGPOWERAT2312 Long Shaft Fixed Wing MotorwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

t-motor-at2312-long-shaft-envelopeEnvelope Ø28.4 × 44.5 mm (Motor envelope Ø × length exactly as T-Motor lists it (whether the shaft is included is not stated))STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=t-motor-at2312-long-shaft

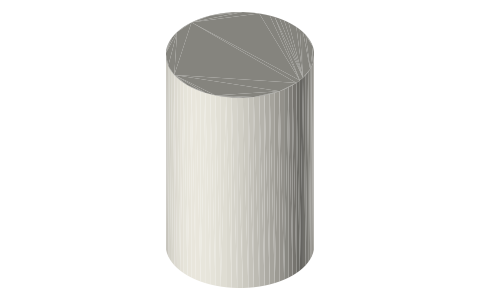

T-Motor AT2312 long-shaft fixed-wing motor, isometric render of a generated part
Render of t-motor-at2312-long-shaft-envelope from the free STEP; not to scale.

Fits with

RC plane outrunners (2212, 2216, 2826, 3508, 4110, 6374) and car inrunners (540 / 3650, 4274, 1/8 scale), isometric render of a generated part
RC plane outrunners (2212, 2216, 2826, 3508, 4110, 6374) and car inrunners (540 / 3650, 4274, 1/8 scale)12 sizes★ 5 files
SunnySky X2212-13 980 Kv II outrunner, isometric render of a generated part
SunnySky X2212-13 980 Kv II outrunner28×28×28 mm★ 1 file
SunnySky X2216 880 Kv II outrunner (long shaft), isometric render of a generated part
SunnySky X2216 880 Kv II outrunner (long shaft)28×28×32 mm★ 1 file
Emax MT2213 935 Kv outrunner, isometric render of a generated part
Emax MT2213 935 Kv outrunner27.9×27.9×39.7 mm★ 1 file

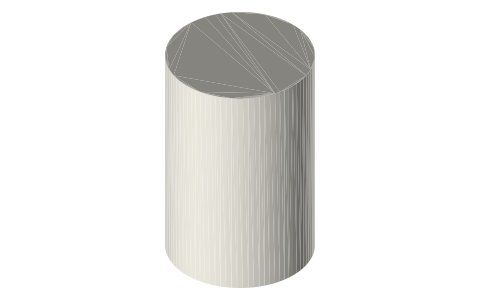

T-Motor AT2814 long-shaft fixed-wing motor, isometric render of a generated part
T-Motor AT2814 long-shaft fixed-wing motor35.2×35.2×54.5 mm★ 1 file

Questions

What shaft does the AT2312 have?

4 mm in and 4 mm out.
