TP4056 USB-C charger module

What are the dimensions of the TP4056 USB-C charger module? · Modern device · basis: AZ-Delivery (reseller) — secondary, no maker drawing

Also called: tp4056 usb-c charger module dimensions, tp4056 usb-c charger module size, tp4056 usb-c charger module mounting holes, tp4056 usb-c charger module medidas, tp4056 usb-c charger module Maße

Exact dimensions. True size, with no printing tolerance added.

length
17.3 mm
width
29 mm
height
4.3 mm

Notes

  • TP4056 USB-C charger module: 17.3 × 29 × 4.3 mm, 1.7 g. Version with protection; versions without it are about 26 mm long. Clones differ.
  • No mounting-hole positions are published.
  • The file is the outline; components and connectors are not modelled.

TP4056 USB-C charger module size chart

dimensionvalue
size17.3 × 29 × 4.3 mm
weight1.7 g

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

AZ-DeliveryTP4056 USB-C charger modulewebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

tp4056-usb-c-charger-module-outline17.3 × 29 × 4.3 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tp4056-usb-c-charger-module

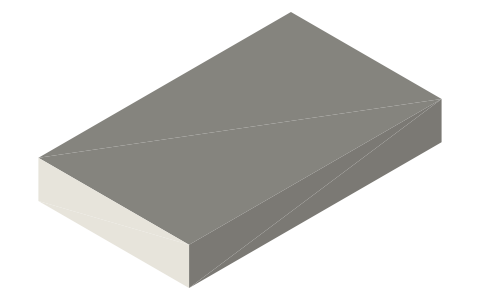

TP4056 USB-C charger module, isometric render of a generated part
Render of tp4056-usb-c-charger-module-outline from the free STEP; not to scale.

Fits with

Ai-Thinker ESP32-CAM, isometric render of a generated part
Ai-Thinker ESP32-CAM27×40.5×4.5 mm★ 1 file
HC-SR04 ultrasonic sensor, isometric render of a generated part
HC-SR04 ultrasonic sensor45×20×15 mm★ 1 file
Adafruit BME280 breakout (original), isometric render of a generated part
Adafruit BME280 breakout (original)17.78×19.05 mm★ 1 file
Adafruit 0.96 in 128x64 OLED (STEMMA QT), isometric render of a generated part
Adafruit 0.96 in 128x64 OLED (STEMMA QT)29.21×31.75×6.2 mm★ 1 file
Adafruit PCA9685 16-channel PWM servo driver, isometric render of a generated part
Adafruit PCA9685 16-channel PWM servo driver62.23×25.4×3 mm★ 1 file
SparkFun Qwiic pHAT v2 for Raspberry Pi, isometric render of a generated part
SparkFun Qwiic pHAT v2 for Raspberry Pi65×30.5 mm★ 1 file

Questions

How big is the TP4056 USB-C charger module?

17.3 × 29 × 4.3 mm.
